Tamiya 70172 Universal Plate L (210x160mm)

The Tamiya 70172 Universal Plate L (210 x 160 mm) provides a reconfigurable platform for building your own robot chassis. The set comes with a plate with gridded mounting holes, angle brackets, and mounting hardware that lets you mount mechanical components in a variety of positions.

AUD$ 31.95

In stock in Australia

Shipping from $7.90

+16 more from our supplier in 7-10 days

Our Code: MEC-30120

Supplier Link: [Pololu MPN:734]

Overview

The Tamiya 70172 Universal Plate L (210 x 160 mm) is a customizable chassis designed to be compatible with multiple Tamiya products.

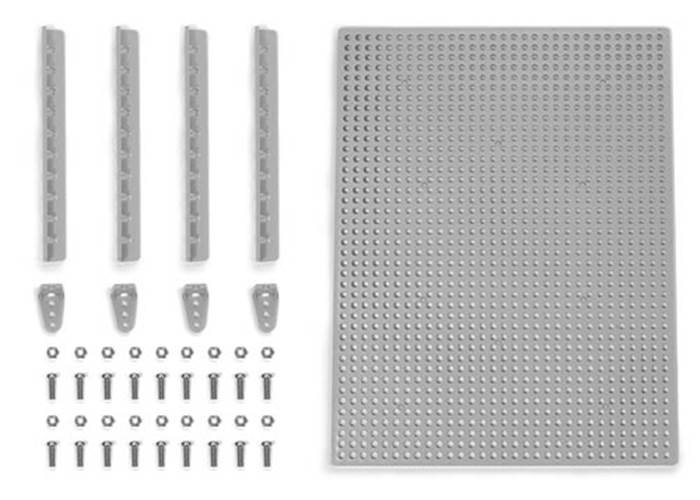

This set includes a plastic plate with an 41 x 31 grid of 3 mm holes spaced 5 mm apart, which provides space for many mechanical connections. The four included eleven-hole angle brackets can connect additional Universal Plates or can serve as a mounting point for an axle. The plate set also includes four shaft mounts (the triangular brackets in the above picture) for supporting axles at one of three heights from the plate. The kit provides eighteen screws and eighteen nuts for connecting the angle brackets and shaft mounts to the plate.

Included Parts

  • 41 x 31 grid of 3 mm holes spaced 5 mm apart (210 x 160 mm, 8.27" x 6.3")
  • Four eleven-hole angle brackets
  • Four shaft mounts
  • 18 screws and 18 nuts
