Tamiya 70143 Universal Arm Set

The Tamiya 70143 Universal Arm Set can be used to make crank systems, link systems, and structures for your robot. The 41-hole arms consist of 3 mm holes spaced 5 mm apart making the arm set compatible with many Tamiya products and sets.

AUD$ 14.95

In stock in Australia

Shipping from $7.90

+10 more from our supplier in 7-10 days

Our Code: MEC-30122

Supplier Link: [Pololu MPN:88]

Overview

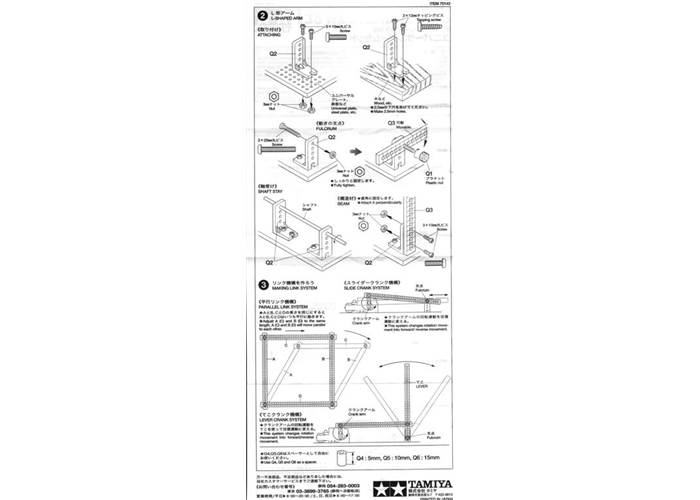

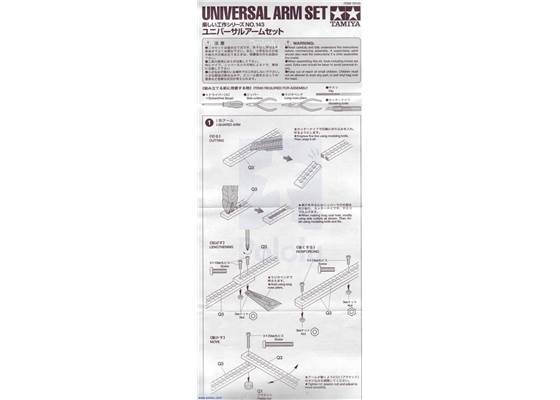

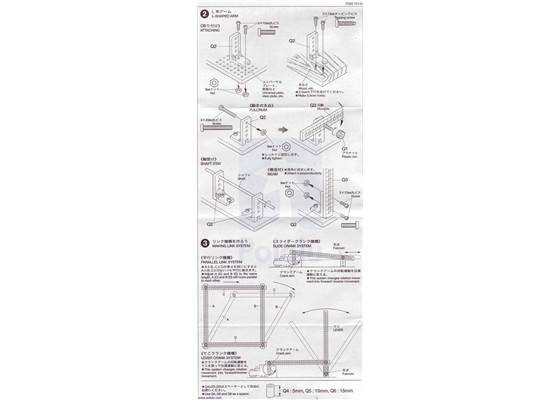

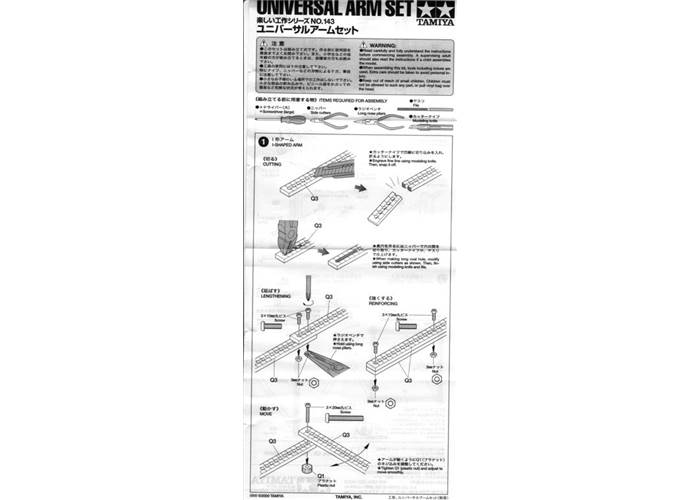

The Tamiya 70143 Universal Arm Set can be used to create crank systems, link systems, and structures for your robot or other project, as illustrated at the bottom of the instructions shown here.

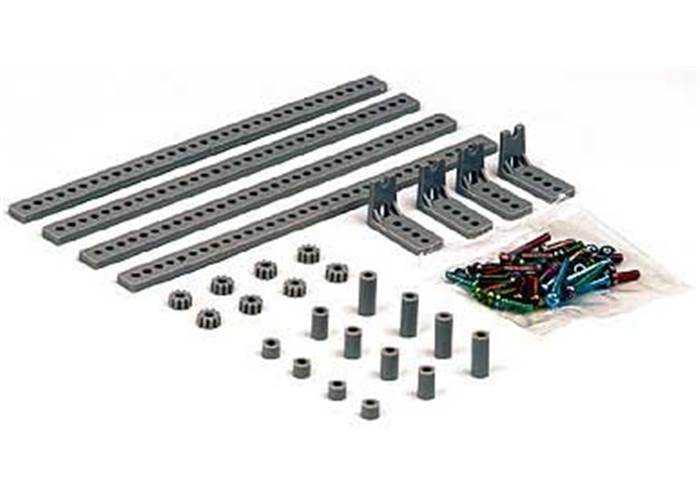

This set includes four 33-hole arms with 3 mm holes spaced 5 mm apart. The arms can be cut to the desired length (each arm has regularly-spaced grooves that help to make a straight cut), and the holes can be modified to create longer slots for use in a cranking system. Four L-shaped brackets are included in the set for mounting axles or for use as structural support. Also included are twelve spacers at 5 mm, 10 mm, and 15 mm lengths, eight plastic nuts, and a metal screw and nut set.

Included Parts

  • Four arms with 33 3 mm holes spaced 5 mm apart (10 x 170 mm, 0.4" x 6.7")
  • Four four-hole L-shaped brackets
  • Four 5 mm spacers
  • Four 10 mm spacers
  • Four 15 mm spacers
  • 15 3 x 10 mm screws
  • Four 3 x 20 mm screws
  • Four 3 x 25 mm screws
  • Eight 3 x 12 mm tapping screws
  • Eight plastic nuts
  • 15 metal nuts
