SMD LED - RGB WS2812B (Whole Reel)

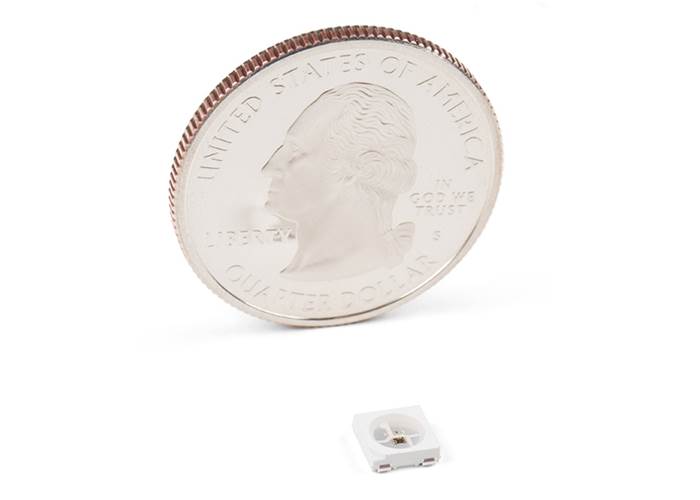

The WS2812B (or "NeoPixel") may look like a common 5050-sized (5x5mm) SMD LED, but there’s actually an integrated control circuit embedded inside there too.

AUD$ 992.95

Special Order

Shipping from $18.70

+33 more from our supplier in 7-10 days

Our Code: SKU-006306

Supplier Link: [SparkFun MPN:16347]


Description

The WS2812B (or "NeoPixel") may look like a common 5050-sized (5x5mm) SMD LED, but there’s actually an integrated control circuit embedded inside there too. Sometimes you don't need 10 or even 50, maybe you need a whole reel of 1000! If you are the person who needs that many than this is the perfect quantity for you. If you look really hard, you can see the tiny black chip hidden in there, along with minuscule gold wires connecting the chip to the LED. This LED is certainly more than meets the eye! The 'B' at the end of the WS2812 name denotes that these specific LEDs are equipped with and only require FOUR pins instead of SIX!

The LED itself is unlike most RGB (Red/Green/Blue) LEDs. The brightness of each colour can be adjusted using a serial string to one of 256 different levels. That means there are 16,777,216 (2563) possible combinations of colors. You can produce any colour from white to black (off), or salmon to sienna.

Includes:

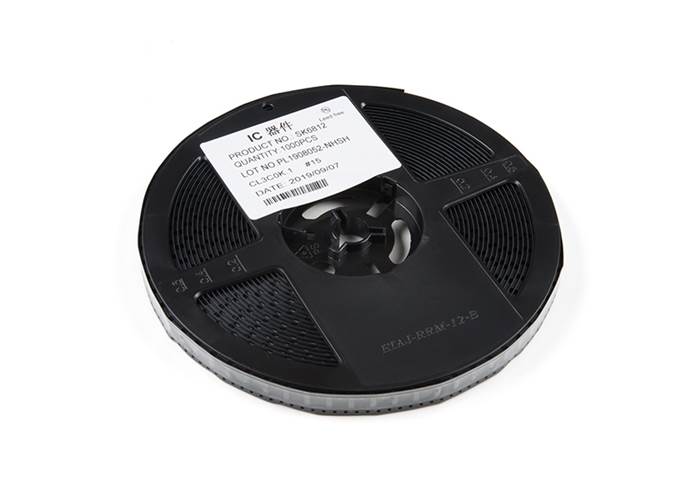

  • 1 Reel = 1,000 pieces.

Specifications

  • Viewing angle: 120 degrees
  • Red: (620-625nm) @ 390-420mcd, 2.0-2.2V
  • Green: (522-525nm) @ 660-720mcd, 3.0-3.4V
  • Blue: (465-467nm) @ 180-200mcd, 3.0-3.4V

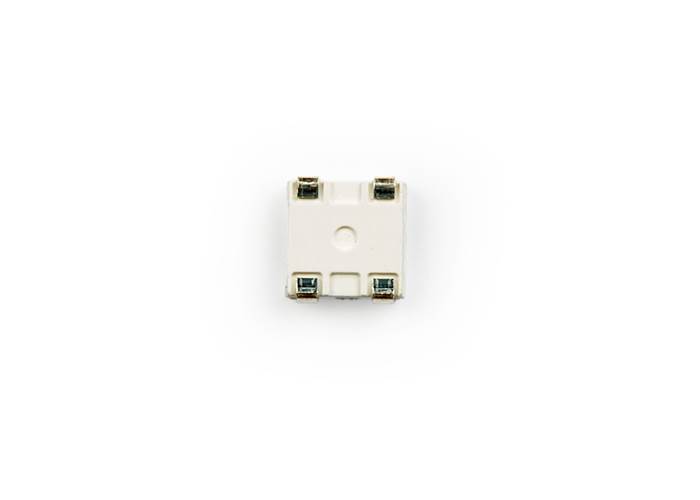

  • 4-pin Design
