Sabertooth 2x32 Dual Motor Driver

Sabertooth 2X32 dual regenerative motor driver from Dimension Engineering drives two robot DC motors with a continuous current of 32A and peak of 64A. Features thermal protection and soft current limiting making it very hard to kill. This versatile driver communicates via serial, packetized serial, radio control PWM signals and analog voltage.

AUD$ 236.95

More local stock soon

Shipping from $7.90

+lots more from our supplier in 3-6 weeks

 Notify Me

Our Code: MCU-60157


Overview

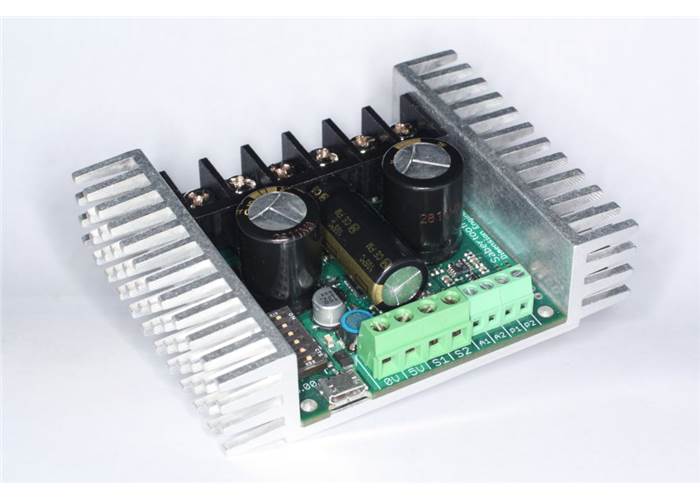

Sabertooth 2x32 is a dual channel motor driver capable of supplying 32 amps to two motors, with peak currents up to 64 amps per motor. It can be operated from radio control, analog, TTL serial or USB inputs. It uses regenerative drive and braking for efficient operation. A variety of operating modes including tank style mixing and automatic calibration allow most projects to work immediately out of the box.

In addition to the standard operating modes, Sabertooth 2x32 features additional signal inputs and power outputs, as well as enhanced configuration options.

User-defined operating modes allow for custom operation, such as switching between radio control and computer-driven inputs on the fly, emergency stops or front panel control overrides.

The auxiliary power outputs can be configured to allow the Sabertooth 2x32 to operate from a power supply without a parallel battery, or automatic control of electromagnetic brakes.

When combined with Dimension Engineering’s Kangaroo x2 motion control module, the Sabertooth 2x32 can be used for closed-loop position or speed control with encoder or analog feedback.

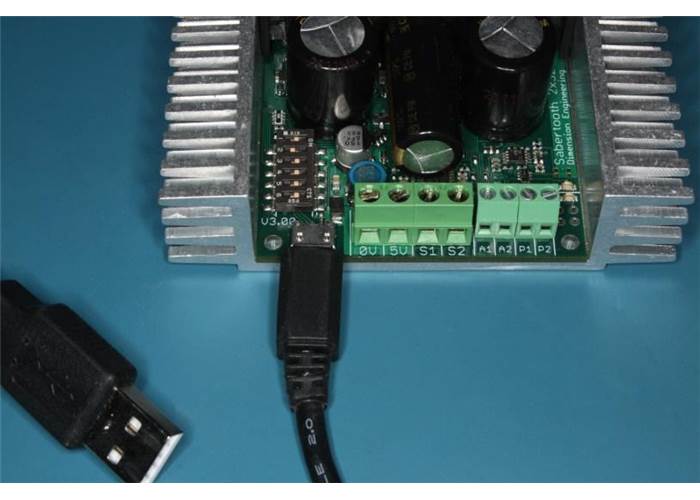

The state of the driver can be monitored in real time using the USB port in any operating mode, making debugging your project faster and easier. Sabertooth 2x32 is more flexible, robust and powerful than previous motor drivers, while also being easier to use.

Product Specs

Model: Sabertooth 2x32
Specifications: 32A continuous, 64A peak per channel
6-30V nominal, 33.6V absolute maximum

Synchronous regenerative drive
Ultrasonic 30 kHz switching frequency
Thermal and overcurrent protection
Battery protection mode
USB control and monitoring
USB serial converter mode for Kangaroo x2
Configurable current limiting
Custom user modes
12-bit motor outputs

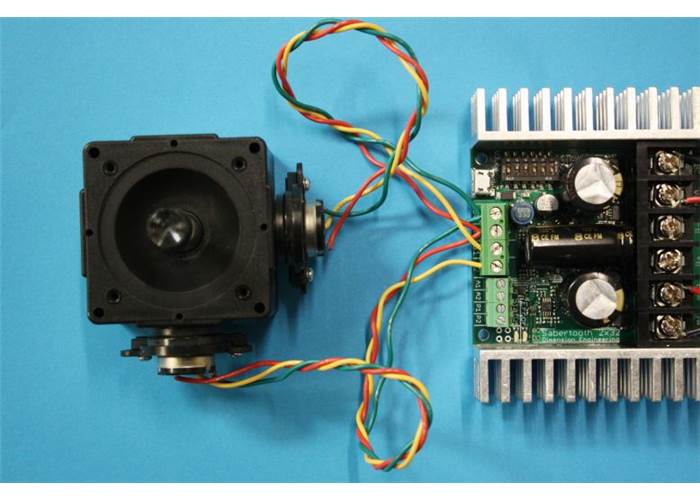

Input modes: analog, R/C, serial (plain text or packetized), USB

Power outputs can act as voltage clamps, brakes, or be controllable

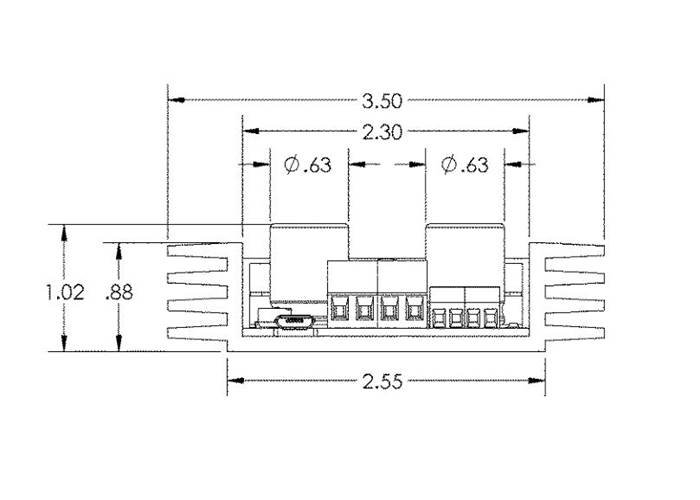

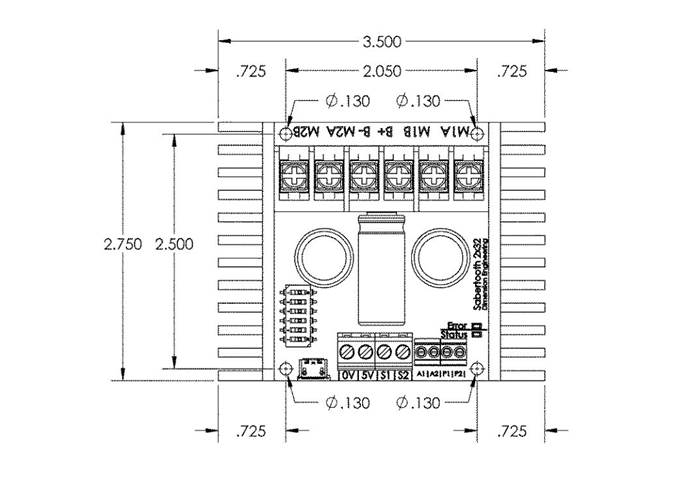

Size: 2.75” x 3.5” x 1.0”
70 x 90 x 25 mm
Applications: Combat robots up to 100lb
Normal and hobby robots up to 300lb
Differential drive robots
Electric vehicles, ride-on toys, scooters

Easy speed/direction control for pumps, conveyors, automation and any application that uses two brushed DC motors
Documentation: Sabertooth 2x32.doc
Sabertooth 2x32.pdf
Quick Start Guide
Sabertooth DIP Switch Wizard
Packet Serial Reference
DEScribe Manual

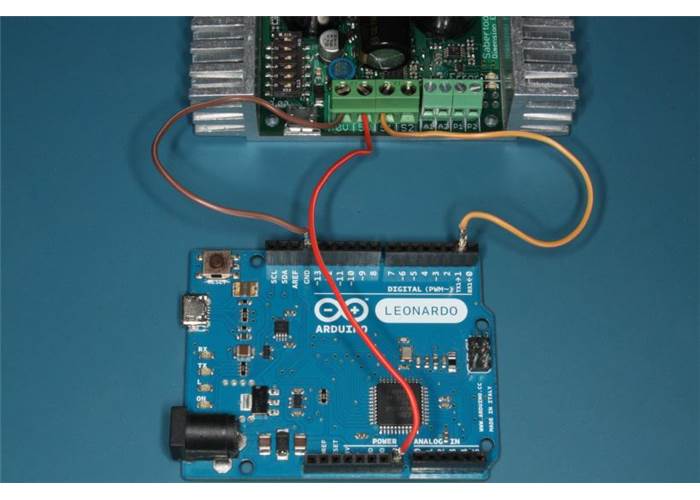

Software: Arduino Libraries
.NET (C#, VB) Library
DEScribe PC Software
Customer projects: Show us yours!
