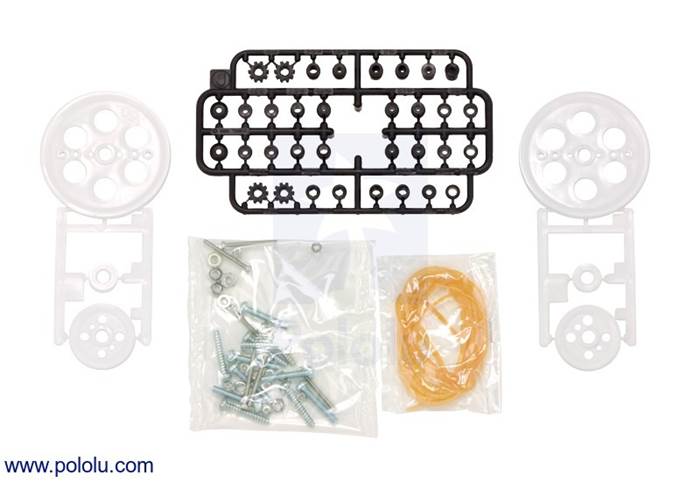

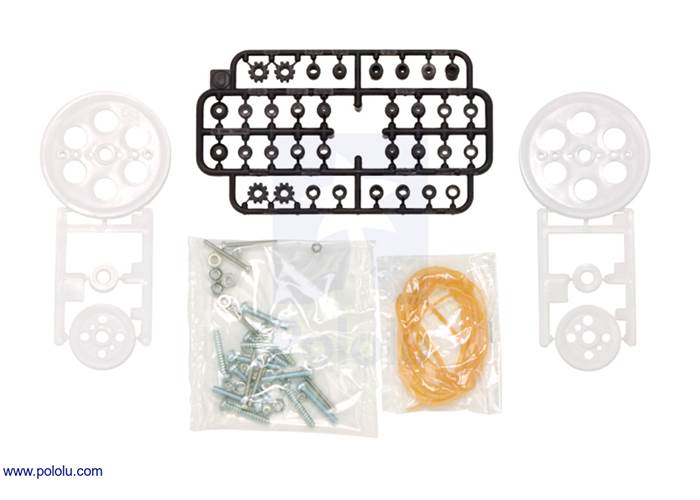

Tamiya 70141 large pulley set contains six pulleys of different diameters for use with other Tamiya products . The included assortment of bushings allow the pulleys to be mounted on various shaft types with the pulley either idling on the shaft or rotating with it.
Special Order
Shipping from $7.90
+7 more from our supplier in 7-10 days
Our Code: SKU-002335
Supplier Link: [Pololu MPN:111]

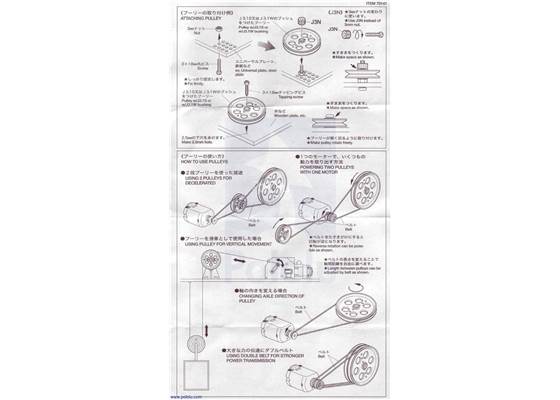

Instructions for Tamiya 70141 Pulley (L) Set page 2
The Tamiya 70141 Pulley (L) Set contains parts compatible with other Tamiya products. The included pulleys can be mounted directly to parts such as the Tamiya 70098 Universal Plate Set, or they can be mounted using shafts such as those included in the Tamiya 70105 3mm Diameter Shaft Set.
The set includes six pulleys of various sizes along with an assortment of single and double bushings that make the pulleys compatible with round and hexagonal shafts of both 3 mm and 2 mm diameters. Depending on the bushing, the pulleys can either idle on a shaft or rotate with it. The double bushings allow for pulleys to be connected and sit next to each other on the same shaft. Other parts in the set include a belt guide for use with a motor shaft, belts, and a screw and nut set.
