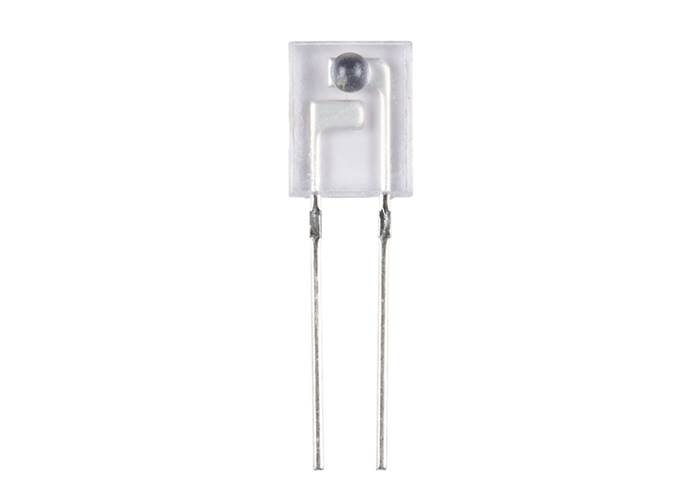

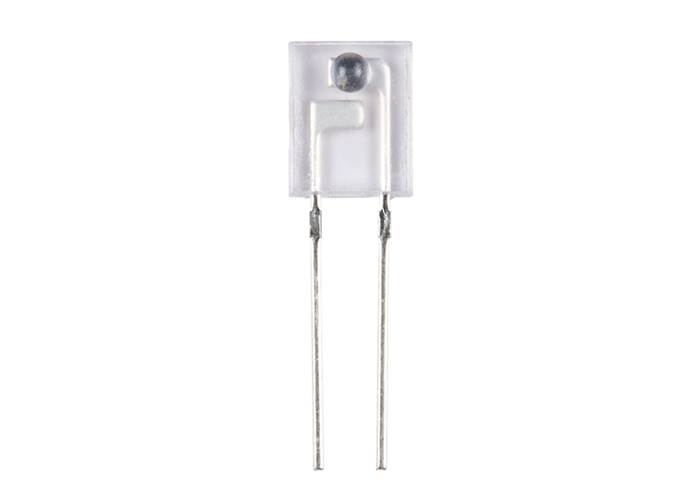

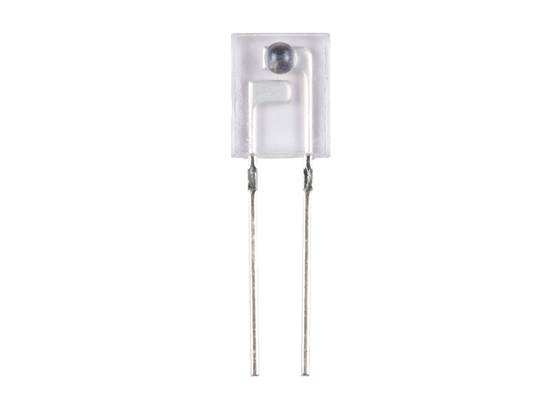

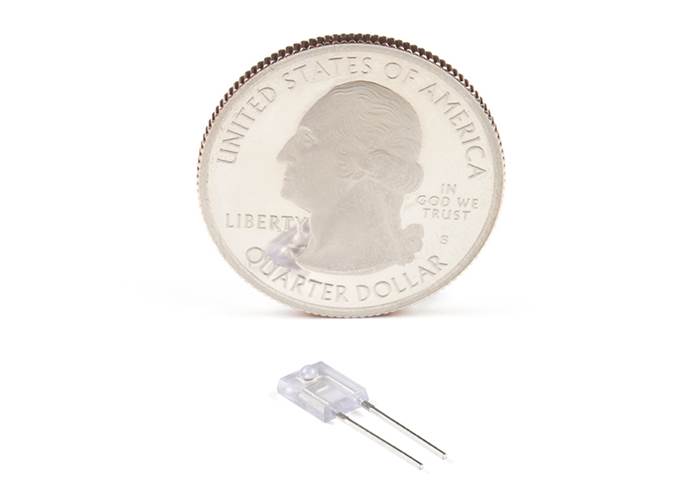

Infrared Detector

An Infrared detector is a detector that reacts to infrared (IR) radiation. These simple devices operate at 940nm and work well for generic IR systems including remote control and touch-less object sensing.

AUD$ 1.35

Special Order

Shipping from $2.90

+422 more from our supplier in 7-10 days

Our Code: SKU-008027

Supplier Link: [SparkFun MPN:19018]


Description

An Infrared detector is a detector that reacts to infrared (IR) radiation. These simple devices operate at 940nm and work well for generic IR systems including remote control and touch-less object sensing. Using a simple ADC on any microcontroller will allow variable readings to be collected from the detector.


Specifications

  • Voltage - Collector Emitter Breakdown (Max): 30 V
  • Current - Collector (Ic) (Max): 20 mA
  • Current - Dark (Id) (Max): 100 nA
  • Wavelength: 940nm
  • Mounting Type: Through Hole
  • Orientation: Side View
  • Operating Temperature: -25°C ~ 85°C (TA)
