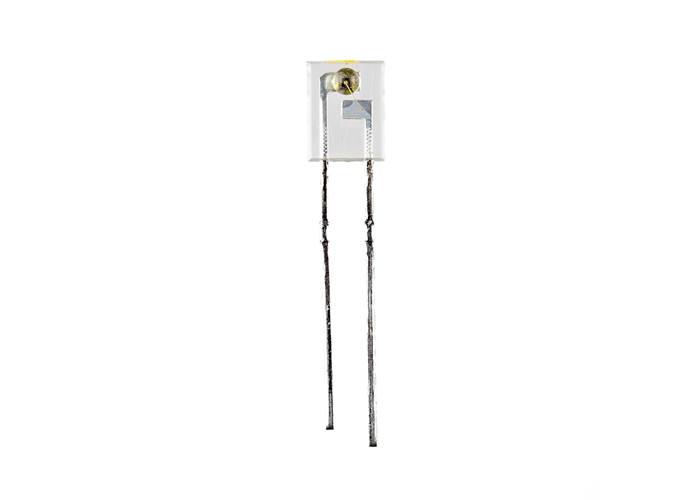

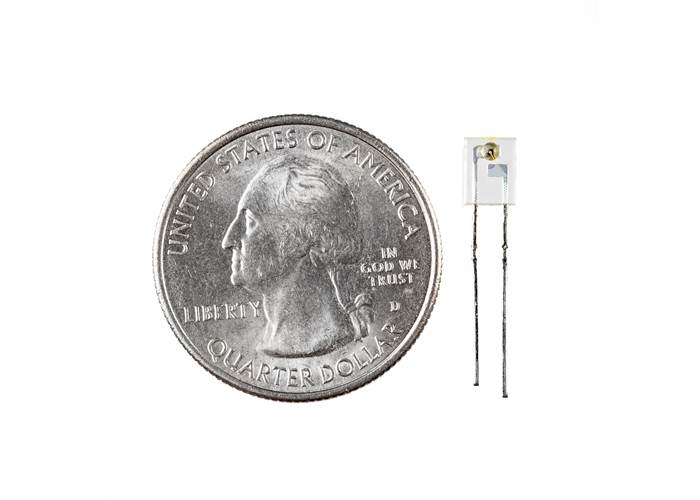

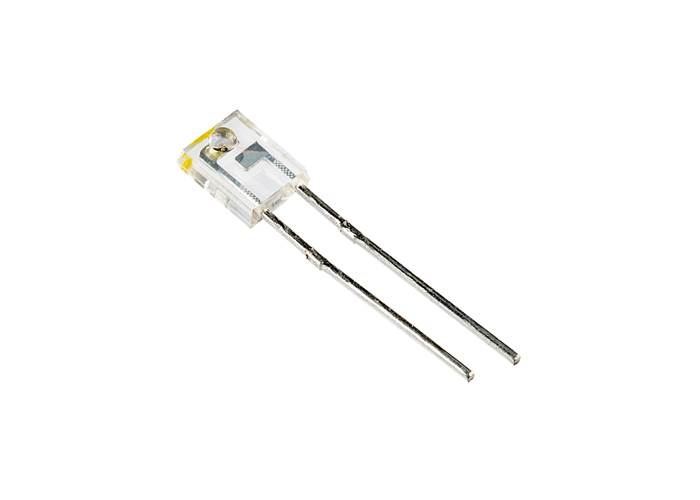

Infrared Emitter - LTE-302

An Infrared emitter, or IR emitter, is a source of light energy in the infrared spectrum. This little part is a light emitting diode (LED) that is used in order to transmit infrared signals from a remote control. This simple device operates at 940nm and works well for generic IR systems.

AUD$ 0.90

Special Order

Shipping from $2.90

+100 more from our supplier in 7-10 days

Our Code: SKU-010682

Supplier Link: [SparkFun MPN:26984]


Description

An Infrared emitter, or IR emitter, is a source of light energy in the infrared spectrum. This little part is a light emitting diode (LED) that is used in order to transmit infrared signals from a remote control. This simple device operates at 940nm and works well for generic IR systems. This emitter is driven up to 50mA with a current limiting resistor as with any LED device.

Sold as individual units.


Specifications

  • Current - DC Forward (If) (Max): 50mA
  • Radiant Intensity (Ie) Min @ If: 0.662mW/sr @ 20mA
  • Wavelength: 940nm
  • Voltage - Forward (Vf) (Typ): 1.2V
  • Viewing Angle: 40°
  • Orientation: Side View
  • Operating Temperature: -40°C ~ 85°C (TA)
  • Mounting Type: Through Hole
