ACS72981KLRATR-150U3 Current Sensor Large Carrier 0A to 150A, 3.3V

This is the large version of a simple carrier for Allegro’s ACS72981KLRATR-150U3 Hall effect-based, electrically isolated current sensor, which offers a low-resistance (~0.2 mΩ) current path and a high 250 kHz bandwidth for fast response times.

AUD$ 19.95

Special Order

Shipping from $7.90

+174 more from our supplier in 7-10 days

Our Code: SKU-010555

Supplier Link: [Pololu MPN:5279]

Description

Overview

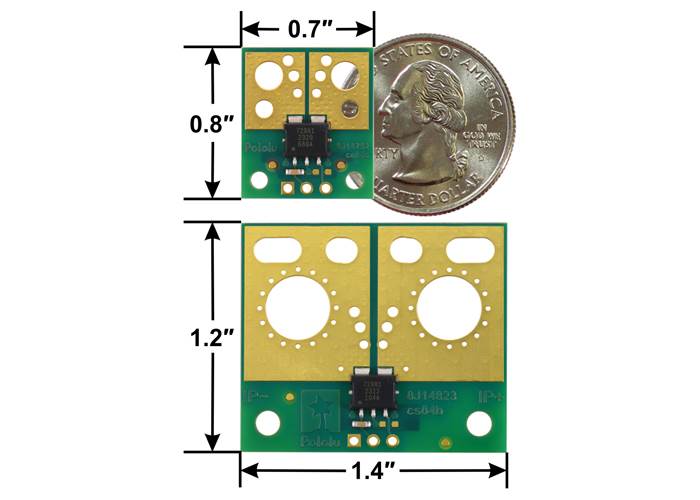

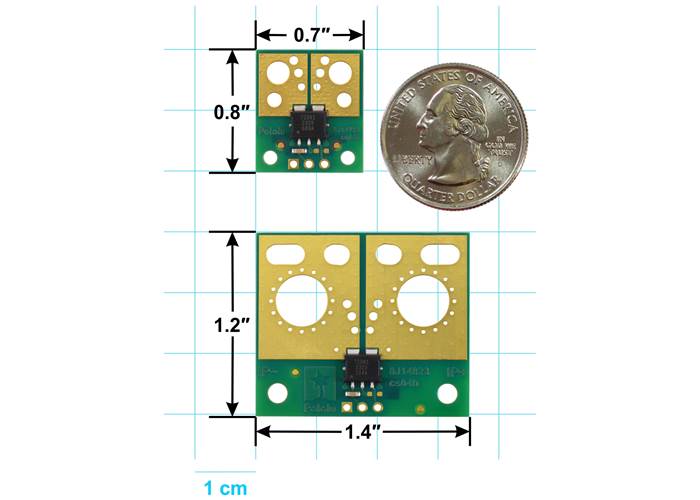

ACS72981 Current Sensor Compact Carrier (top) and Large Carrier (bottom) size comparison.

We are offering these breakout boards with support from Allegro Microsystems as an easy way to use or evaluate their ACS72981xLR Hall effect-based linear current sensors; we therefore recommend careful reading of the ACS72981 datasheet before using this product. The following list details some of the sensor’s key features:

Hall effect-based sensor with electrically isolated current path allows the sensor to be inserted anywhere along the current path and to be used in applications that require electrical isolation.
Differential Hall sensing rejects common-mode fields, so the orientation of the sensor relative to uniform external magnetic fields (e.g. the Earth’s magnetic field) has less effect on the measurement.
The conductive path internal resistance is typically 0.2 mΩ, and the PCB is made with 6 layers of 2-oz copper, so very little power is lost in the module.
High-bandwidth 250 kHz analogue output voltage proportional to AC or DC currents.
Less than 2 µs response time.
3.3V and 5V versions available.
Integrated digital temperature compensation circuitry allows improved accuracy over the full operating temperature range.
Carrier boards, available in compact and large sizes, offer a variety of ways to insert it into the current path and 0.1″-pitch (breadboard compatible) power, ground, and output pins.

The connection points are labelled on the bottom silkscreen. The silkscreen also shows the direction that is interpreted as positive current flow via the +i arrow.

The following table lists the available ACS72981 carrier options:

	Pololu Item #	Part Suffix	Supply Voltage (V)	Current Range		Sensitivity @ Nominal Vcc (mV/A)	Zero Point @ Nominal Vcc (V)	Size	Price


Large Carrier	#5270	050B3	3.0 to 3.6 (3.3 nominal)	Bidirectional	±50 A	26.4	1.65	1.4″×1.2″	$12.95
	#5273	100B3			±100 A	13.2
	#5277	150B3			±150 A	8.8
	#5272	050U3		Unidirectional	0-50 A	52.8	0.33
	#5275	100U3			0-100 A	26.4
	#5279	150U3			0-150 A	17.6
	#5271	050B5	4.5 to 5.5 (5 nominal)	Bidirectional	±50 A	40	2.5
	#5274	100B5		Bidirectional	±100 A	20	2.5
	#5276	100U5		Unidirectional	0-100 A	40	0.5

Compact Carrier	#5250	050B3	3.0 to 3.6 (3.3 nominal)	Bidirectional	±50 A	26.4	1.65	0.7″×0.8″	$9.95
	#5253	100B3			±100 A	13.2
	#5257	150B3			±150 A	8.8
	#5252	050U3		Unidirectional	0-50 A	52.8	0.33
	#5255	100U3			0-100 A	26.4
	#5259	150U3			0-150 A	17.6
	#5251	050B5	4.5 to 5.5 (5 nominal)	Bidirectional	±50 A	40	2.5
	#5254	100B5		Bidirectional	±100 A	20	2.5
	#5256	100U5		Unidirectional	0-100 A	40	0.5

Details for item #5279

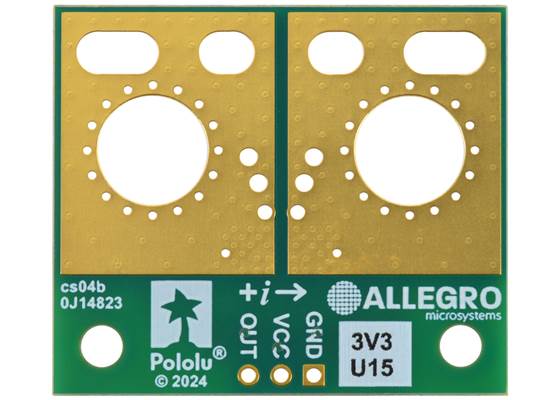

ACS72981KLRATR-150U3 Current Sensor Large Carrier 0A to 150A, 3.3V, bottom view.

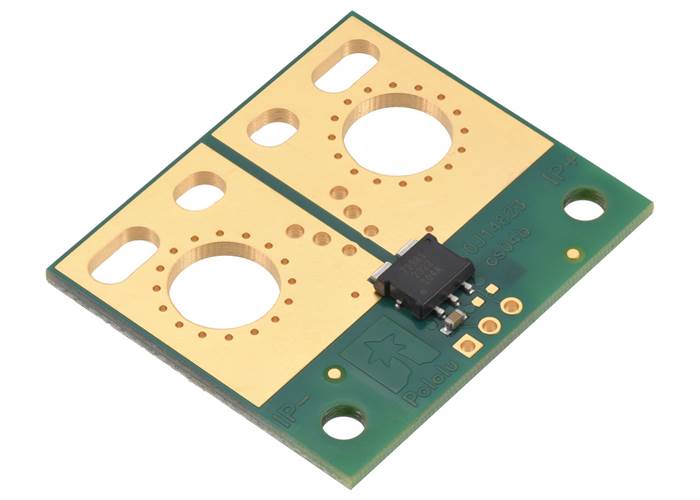

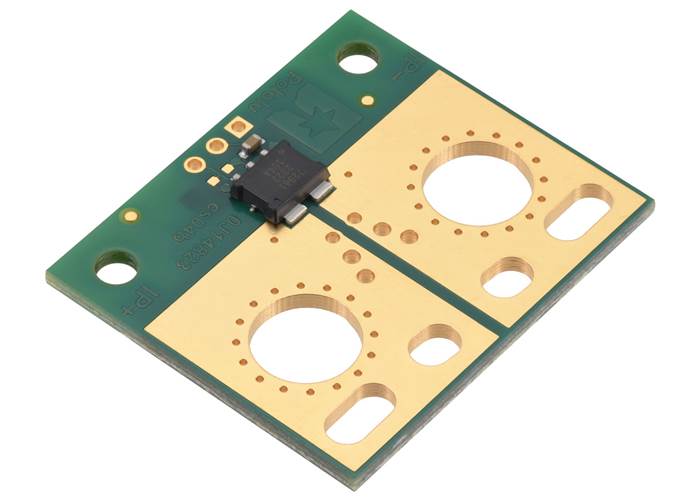

ACS72981 Current Sensor Large Carrier. (1)

This large carrier features the ACS72981KLRATR-150U3, which is intended for nominal 3.3 V operation and is designed for unidirectional input current from 0 A to 150 A. This version can be visually distinguished from the other versions by the “3V3 U15” printed on the bottom side, as shown in the left picture above.

Part Suffix	Range	Supply Voltage	Sensitivity @ 3.3 V	Zero Point @ 3.3 V	Size
150U3	0-150 A (unidirectional)	3.0 V to 3.6 V	17.6 mV/A	0.33 V	1.4″×1.2″

A compact carrier is also available for this sensor IC for more space-constrained applications or to evaluate the IC’s performance with a smaller PCB area for thermal dissipation.

Using the sensor

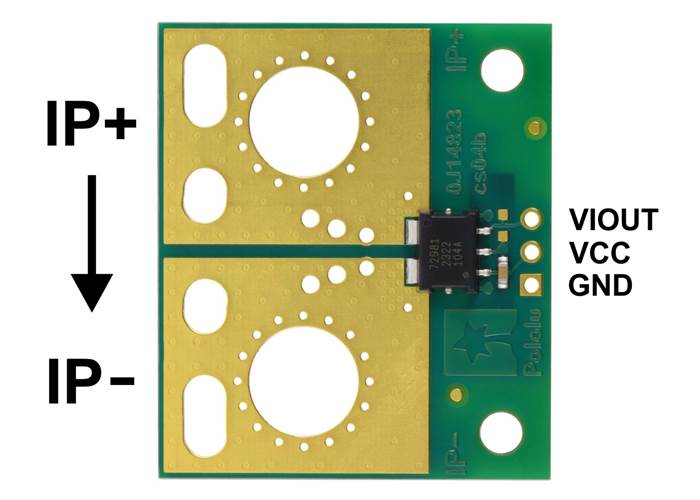

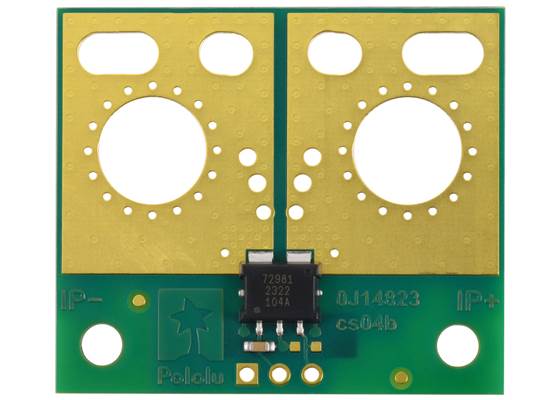

ACS72981 Current Sensor Large Carrier pinout.

This sensor has five required connections: the input current (IP+ and IP-), logic power (VCC and GND), and the sensor output (VIOUT).

The sensor requires a supply voltage of 3.0 V to 3.6 V to be connected across the VCC and GND pads, which are labelled on the bottom silkscreen. The sensor outputs a ratiometric analogue voltage on VIOUT that has a zero point at VCC/10 and increases by 17.6 mV × (VCC/3.3 V) per amp of input current:

``V_"IOUT" = V_"CC" / 10 + 0.0176 text(V)/text(A) * V_"CC" / (3.3 text(V)) * I_"P" = V_"CC" * (1/10 + I_"P" / (187.5 text(A)))``

``I_"P" = 187.5 text(A) * (V_"IOUT" / V_"CC" – 1/10)``

The VIOUT, VCC, and GND pins work with 0.1″-pitch header pins and are compatible with standard solderless breadboards.

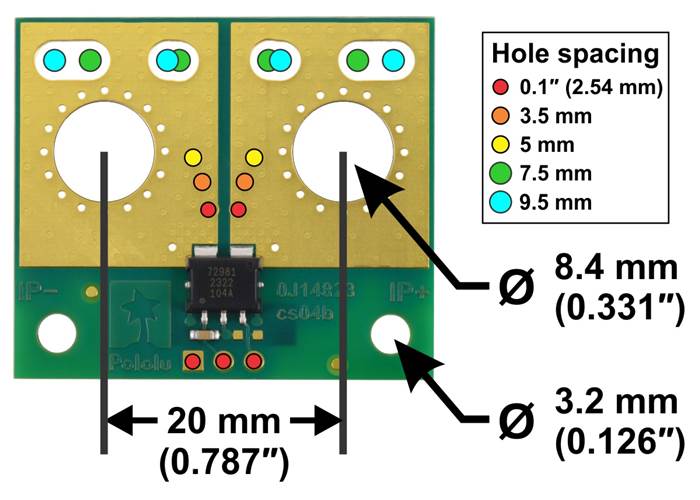

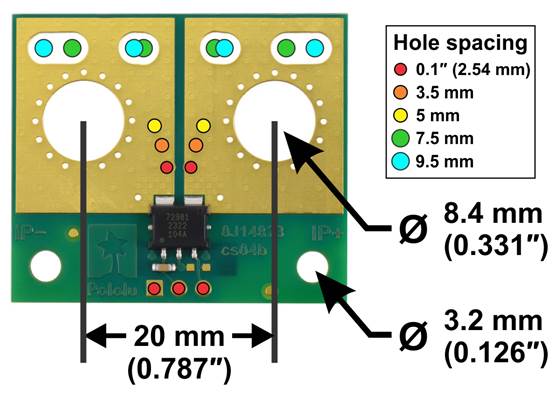

ACS72981 Current Sensor Large Carrier basic dimensions of current path connection holes and slots.

You can insert the board into your current path in a variety of ways. The largest through-holes are 8.4 mm in diameter with 20 mm spacing. These can be used with 5/16″ or M8 screws for attaching various types of lugs or solderless ring terminals, or thick wires up to 2 AWG can be soldered directly to the board. The slots near the edge of the board can accommodate a 4-pin terminal block or other connector with a pitch between 7.5 mm and 9.5 mm. Examples of these kinds of connections are shown in the pictures below. Holes with 0.1″, 3.5 mm, and 5 mm spacing are also available for connecting male header pins or terminal blocks, but please note that these smaller connection options are generally not suitable for high currents like those this sensor is intended for.

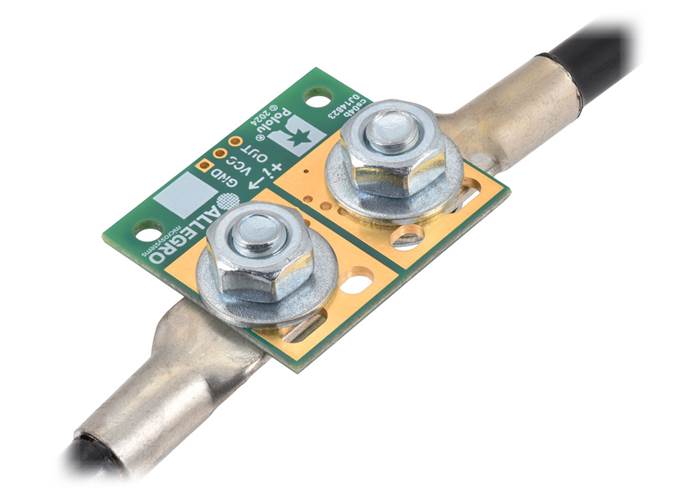

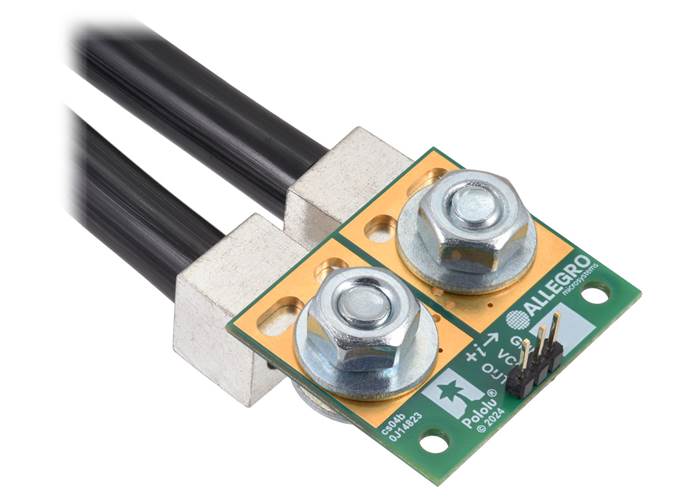

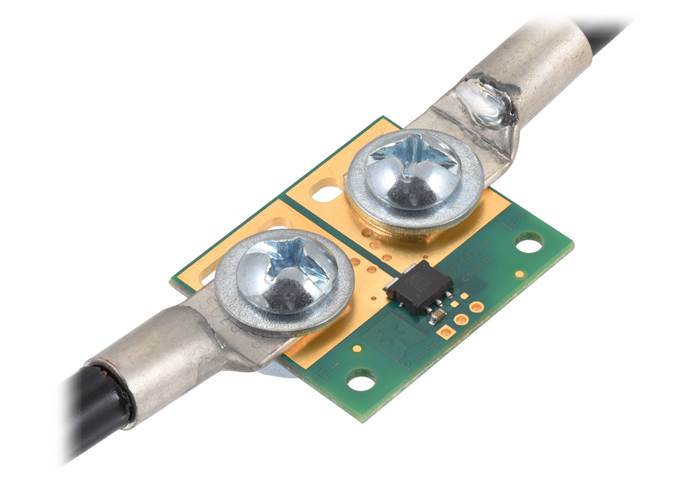

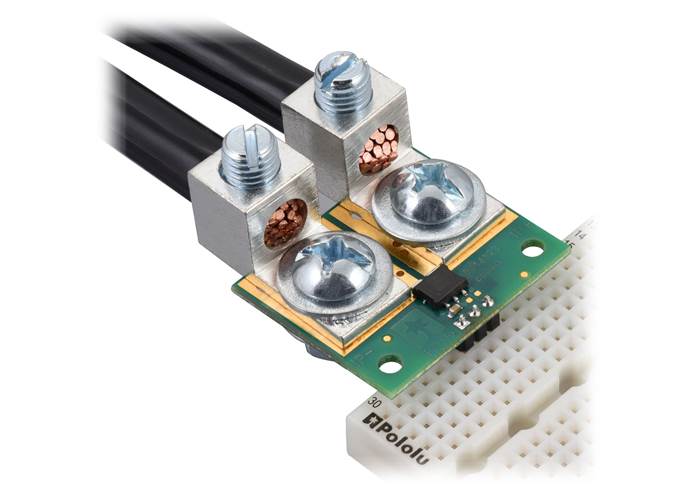

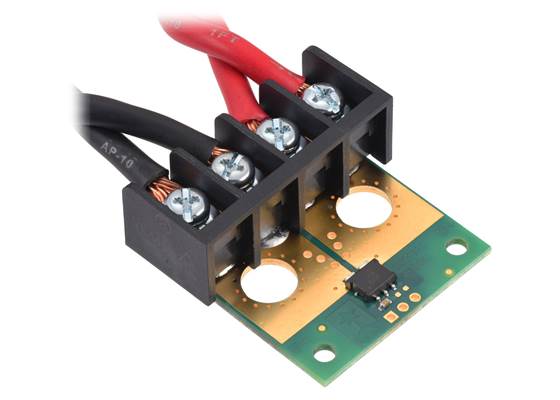

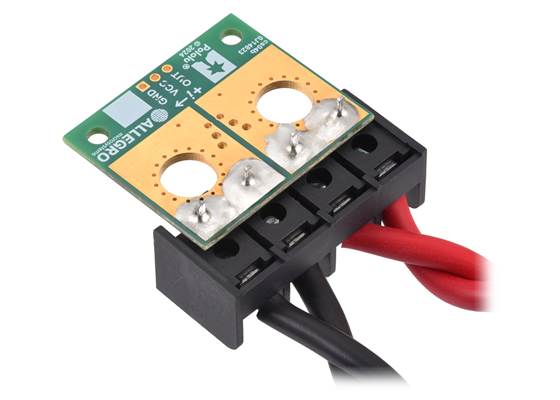

ACS72981 Current Sensor Large Carrier with wires connected by solderless lugs and header pins soldered for use with a breadboard.	ACS72981 Current Sensor Large Carrier with wires connected by solderless ring terminals.	ACS72981 Current Sensor Large Carrier with wires connected by terminal blocks.
ACS72981 Current Sensor Large Carrier with wires connected by solderless lugs and header pins soldered for use with a breadboard. (1)	ACS72981 Current Sensor Large Carrier with wires connected by solderless ring terminals. (1)	ACS72981 Current Sensor Large Carrier with wires connected by terminal blocks. (1)

Warning: This product is intended for use below 30 V. Working with higher voltages can be extremely dangerous and should only be attempted by qualified individuals with appropriate equipment and experience.

Schematic and dimension diagrams

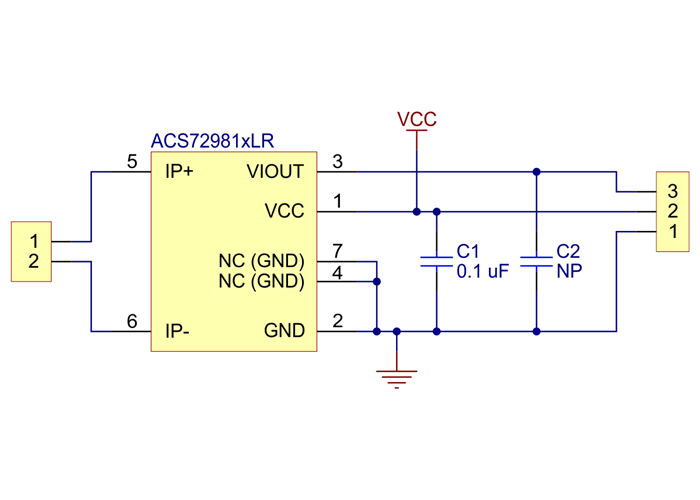

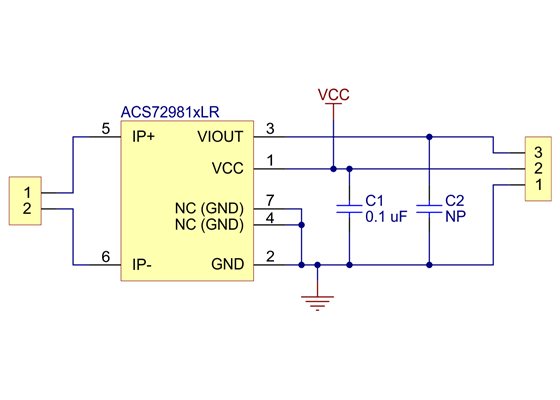

ACS72981 Current Sensor Carrier schematic diagram.

The dimension diagram is available as a downloadable PDF (402k pdf).

Comparison of the Pololu current sensor carriers

We have a variety of current sensors available with different ranges, sensitivities, and features. The table below summarizes our selection of active and preferred options:


	ACS711 CurrentSensor Carriers	ACS71240 CurrentSensor Carriers	ACS724 CurrentSensor Carriers	ACS72981Current SensorCompact Carriers	ACS72981Current SensorLarge Carriers
Sensor IC	Allegro ACS711KEXT	Allegro ACS71240	Allegro ACS724LLCTR	Allegro ACS72981xLR
Vcc range (V)	3.0–5.5	3.3V versions: 3.0–3.6 5V versions: 4.5–5.5	4.5–5.5	3.3V versions: 3.0–3.6 5V versions: 4.5–5.5
Current range / sensitivity	Bidirectional:⁽¹⁾ ±15.5 A / 90 mV/A ±31 A / 45 mV/A	3.3V Bidirectional: ±10 A / 132 mV/A ±30 A / 44 mV/A ±50 A / 26.4 mV/A 5V Unidirectional: 0–⁠50 A / 80 mv/A	5V Bidirectional:⁽²⁾ ±2.5 A / 800 mV/A ±5 A / 400 mV/A ±10 A / 200 mV/A ±20 A / 100 mV/A ±30 A / 66 mV/A ±50 A / 40 mV/A 5V Unidirectional:⁽²⁾ 0–⁠5 A / 800 mv/A 0–⁠10 A / 400 mv/A 0–⁠20 A / 200 mv/A 0–⁠30 A / 133 mV/A	3.3V Bidirectional:⁽¹⁾ ±50 A / 26.4 mV/A ±100 A / 13.2 mV/A ±150 A / 8.8 mV/A 3.3V Unidirectional:⁽¹⁾ 0–⁠50 A / 52.8 mv/A 0–⁠100 A / 26.4 mv/A 0–⁠150 A / 17.6 mv/A 5V Bidirectional:⁽²⁾ ±50 A / 40 mV/A ±100 A / 20 mV/A 5V Unidirectional:⁽²⁾ 0–⁠100 A / 40 mv/A	3.3V Bidirectional:⁽¹⁾ ±50 A / 26.4 mV/A ±100 A / 13.2 mV/A ±150 A / 8.8 mV/A 3.3V Unidirectional:⁽¹⁾ 0–⁠50 A / 52.8 mv/A 0–⁠100 A / 26.4 mv/A 0–⁠150 A / 17.6 mv/A 5V Bidirectional:⁽²⁾ ±50 A / 40 mV/A ±100 A / 20 mV/A 5V Unidirectional:⁽²⁾ 0–⁠100 A / 40 mv/A
IC path resistance	0.6 mΩ	0.6 mΩ	0.6 mΩ	0.2 mΩ
Max bandwidth	100 kHz	120 kHz	120 kHz⁽³⁾	250 kHz
Size	0.7″ × 0.8″	0.7″ × 0.8″	0.7″ × 0.8″	0.7″ × 0.8″	1.4″ × 1.2″
Overcurrent fault output
Differential sensing
Non-ratiometric output
1-piece price	$3.49	$3.95	$6.95 – $7.49	$9.95	$12.95

⁽¹⁾ Sensitivity when Vcc = 3.3 V; sensitivity is ratiometric.
⁽²⁾ Sensitivity when Vcc = 5 V; sensitivity is ratiometric.
⁽³⁾ Bandwidth can be reduced by adding a filter capacitor.

Specifications

Dimensions

Size:	1.4″ × 1.2″
Weight:	4.2 g

General specifications

Typical operating voltage:	3.3 V
Current sense:	17.6 mV/A¹
Minimum logic voltage:	3.0 V
Maximum logic voltage:	3.6 V
Supply current:	14 mA²
Version:	0A to 150A (unidirectional 150A), 3.3V
Current sensor:	Allegro ACS72981KLRATR-150U3
