SMD Addressable RGB LED - IN-PI554FCH 5050 (Cut Tape)

The IN-PI554FCH is a 5050-sized SMD LED with an integrated high quality constant current IC and RGB LED chip. Since these require a bit of SMD soldering skills to get them attached to your board. it is recommended to have good SMD soldering skills before incorporating the IN-PI554FCH.

AUD$ 1.35

Special Order

Shipping from $2.90

+822 more from our supplier in 7-10 days

Our Code: SKU-010680

Supplier Link: [SparkFun MPN:26982]


Description

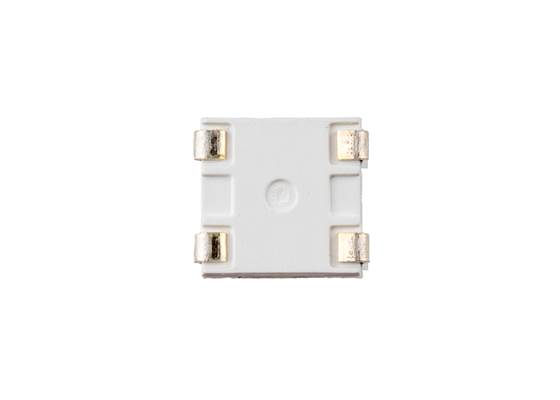

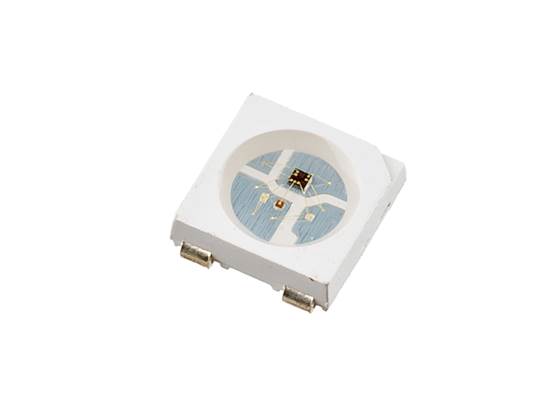

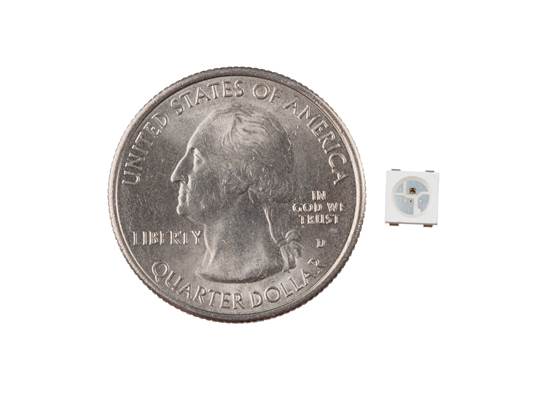

The IN-PI554FCH is a 5050-sized SMD LED with an integrated high quality constant current IC and RGB LED chip.

Since these require a bit of SMD soldering skills to get them attached to your board. it is recommended to have good SMD soldering skills before incorporating the IN-PI554FCH.

Sold as individual units. These come as cut tape.


Specifications

  • 4-pin design
  • Red:
    • Wavelength: 620-625nm
    • Light Intensity: 500-1000mcd
    • Working Current: 12mA
    • Working Voltage: 1.8-2.2V
  • Green:
    • Wavelength: 520-525nm
    • Light Intensity: 1000-1700mcd
    • Working Current: 12mA
    • Working Voltage: 2.8-3.2V
  • Blue:
    • Wavelength: 465-470nm
    • Light Intensity: 500-1000mcd
    • Working Current: 12mA
    • Working Voltage: 2.8-3.2V
