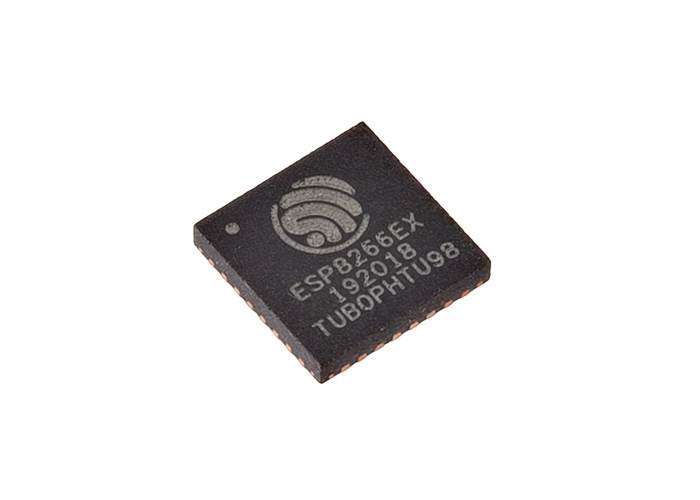

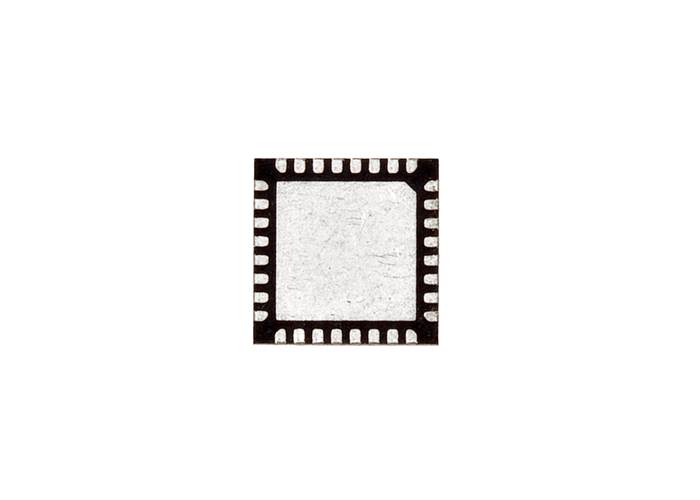

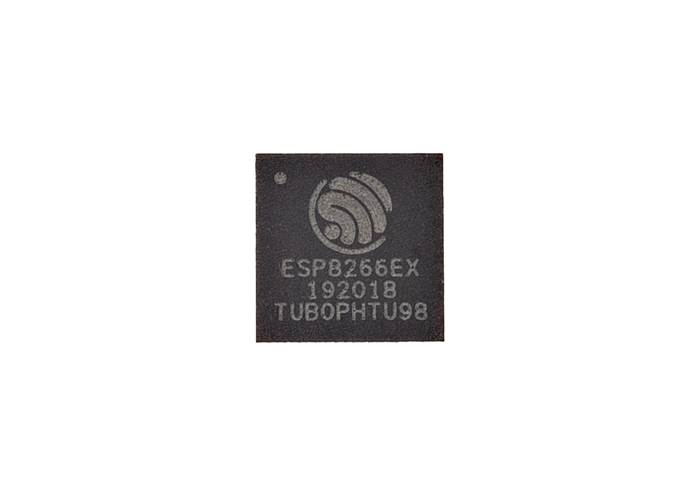

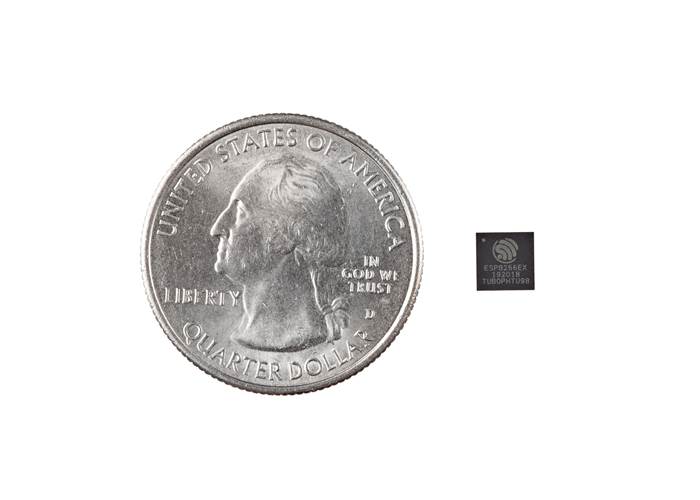

Espressif ESP8266EX

Espressif’s ESP8266EX delivers highly integrated Wi-Fi SoC solution to meet users’ continuous demands for efficient power usage, compact design and reliable performance in the Internet of Things industry.

AUD$ 2.70

Special Order

Shipping from $2.90

+10 more from our supplier in 7-10 days

Our Code: SKU-010681

Supplier Link: [SparkFun MPN:26983]


Description

Espressif’s ESP8266EX delivers highly integrated Wi-Fi SoC solution to meet users’ continuous demands for efficient power usage, compact design and reliable performance in the Internet of Things industry.

With complete and self-contained Wi-Fi networking capabilities, ESP8266EX can perform either as a standalone application or as a peripheral to a host MCU. When ESP8266EX hosts the application, it promptly boots up from the flash. The integrated highspeed cache helps to increase the system performance and optimise the system memory. Also, ESP8266EX can be applied to any microcontroller design as a Wi-Fi adaptor through SPI/SDIO or UART interfaces.

ESP8266EX integrates antenna switches, RF balun, power amplifier, low noise receive amplifier, filters and power management modules. The compact design minimizes the PCB size and requires minimal external circuitries.

Besides the Wi-Fi functionalities, ESP8266EX also integrates an enhanced version of Tensilica’s L106 Diamond series 32-bit processor and on-chip SRAM. It can be interfaced with external sensors and other devices through the GPIOs.

Sold as individual units.

NOTE: Not recommended for new designs.


Specifications

  • Protocol: 802.11 b/g/n (HT20)
  • Frequency Range: 2.4GHz ~ 2.5GHz (2400MHz ~ 2483.5MHz)
  • Operating Voltage: 2.5V ~ 3.6V
  • Operating Current: Average value: 80mA
  • Operating Temperature Range: –40°C ~ 125°C
