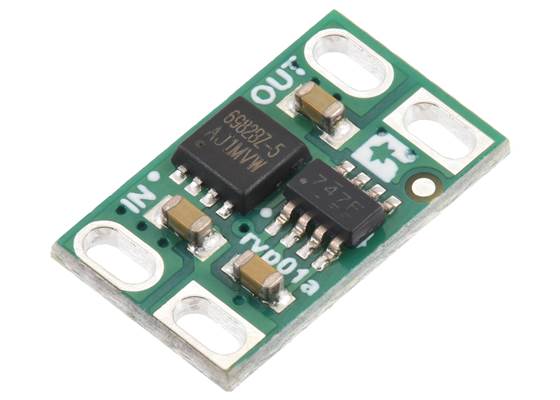

Pololu Ideal Diode Reverse Voltage Protector, 4-60V, 12A

This module protects a connected load from reverse voltages down to -60 V. This version acts as an ideal diode, blocking reverse current from output to input .

AUD$ 3.40

Special Order

Shipping from $2.90

+64 more from our supplier in 7-10 days

Our Code: SKU-010701

Supplier Link: [Pololu MPN:5383]


Description

Overview

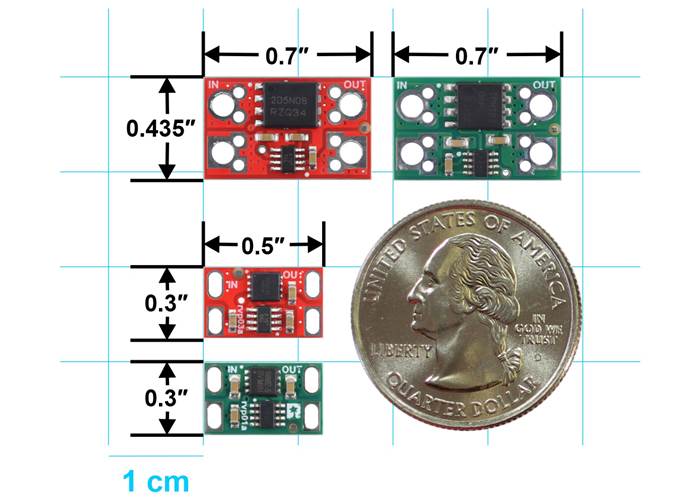

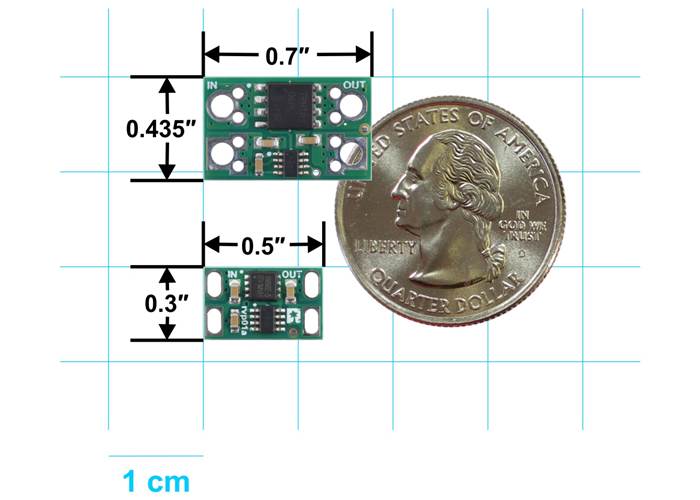

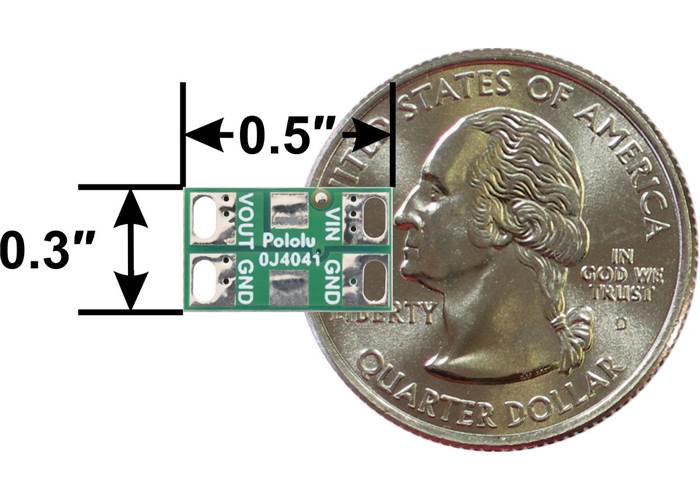

Pololu Reverse Voltage Protector dimensions with US quarter for size reference.

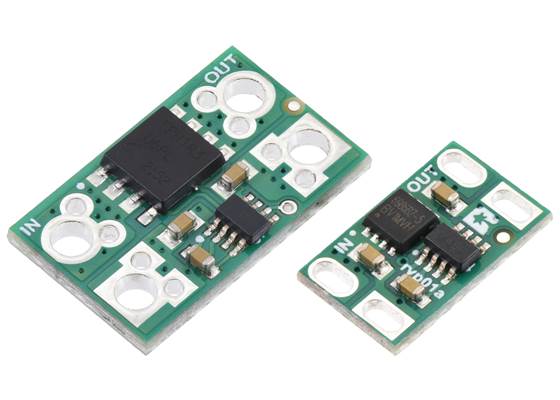

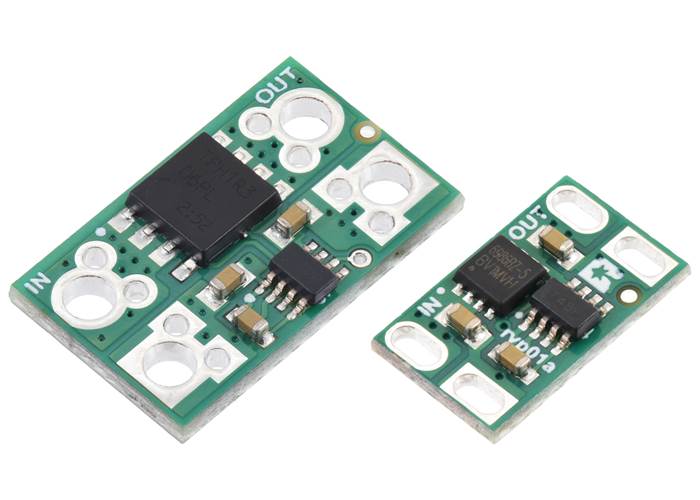

Pololu Reverse Voltage Protectors are tiny 0.3″×0.5″ modules that can be inserted between a power supply and its load to protect that load from damage in the case of accidental reversal of power polarity. They operate from 4 V (3.2 V after startup) to 60 V and provide protection from negative voltages down to -60 V. They are available in two different power levels (10 A or 12 A) and with or without reverse current blocking, providing four options in all:

Pololu
Item #
Max
current
On resistance Reverse current
blocking
Price
#5380 10 A < 10 mΩ no $1.49
#5381 12 A < 5 mΩ $1.95
#5382 10 A < 10 mΩ yes (ideal diode) $1.75
#5383 12 A < 5 mΩ $2.25

The versions without reverse current blocking are suitable for use with loads that have the potential to send current back into the power supply, such as motors. The versions with reverse current blocking act as ideal diodes, preventing any current from flowing from the load back into the supply.

Note: Any voltage on the output will reduce the 60 V maximum rating. For example, if there is a large capacitor charged to 24 V on the ouput, the minimum negative voltage would be -36 V.

Details for item #5383

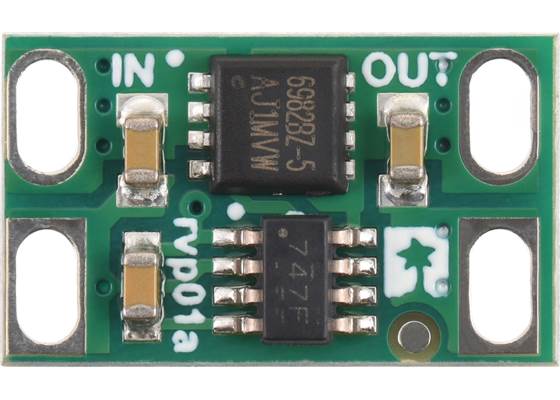

Pololu Ideal Diode Reverse Voltage Protector, 4-60V, 12A, top view.

Pololu Reverse Voltage Protector/Ideal Diode Reverse Voltage Protector, bottom view.

This module uses an LM74700-Q1 reverse voltage protection ideal diode controller and N-channel MOSFET to provide protection from negative voltages down to -60 V. It operates from 4 V (3.2V after startup) to 60 V and has a VIN path impedance of approximately 5 mΩ when the MOSFET is on (i.e. when power is connected with the proper polarity), enabling currents up to around 12 A continuous (and up to around 40 A for a few seconds). This version acts as an ideal diode, blocking reverse current from output to input.

Operating voltage Max current On resistance Reverse current blocking
4*-60 V 12 A < 5 mΩ yes (ideal diode)
* Operates down to 3.2 V after startup.

Connections

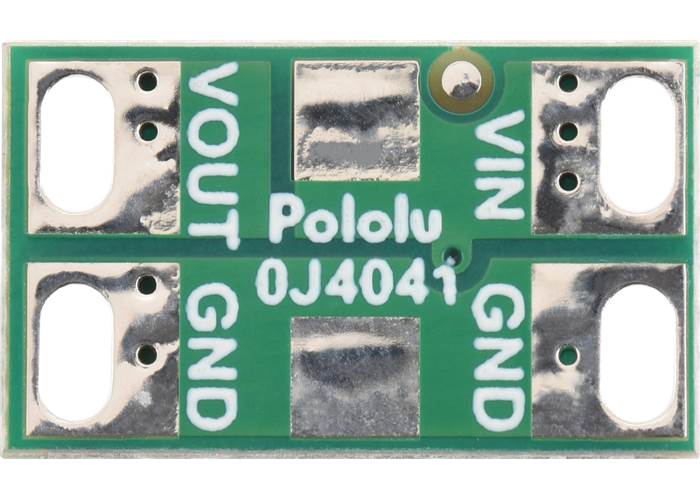

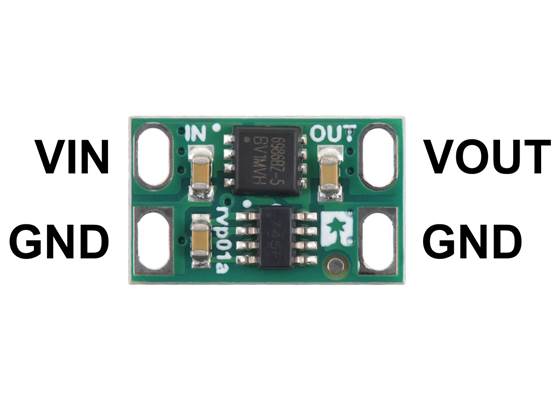

Pololu Reverse Voltage Protector pinout.

Supply power and ground connect to the VIN and GND side of the board, and the VOUT and GND pins connect to the load. If the supply is connected correctly, with its positive voltage on VIN, the power will pass through the board to VOUT. If the supply is connected incorrectly, with the positive voltage on GND, supply power will not pass through to the output, and any connected load will be protected from the reversed supply voltage.

The input and output slots can accommodate a variety of connectors, including 5mm-pitch terminal blocks, 3.5mm-pitch terminal blocks, 0.2″-pitch headers, and 0.1″-pitch headers.

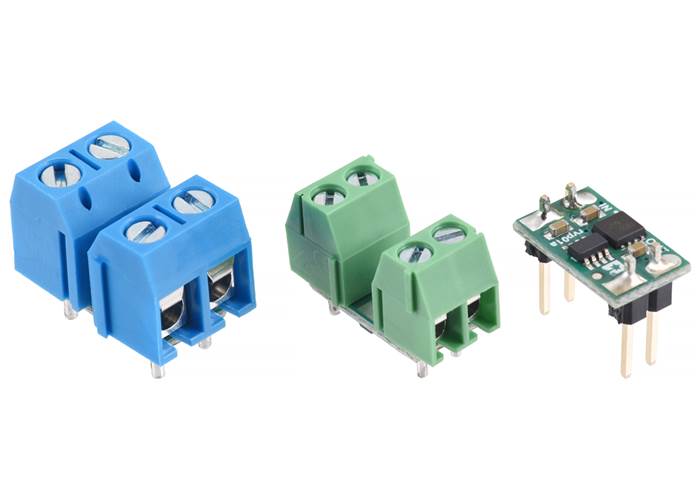

Examples of various connectors that can be used with the Pololu Reverse Voltage Protectors (from left to right: 5mm terminal blocks, 3.5mm terminal blocks, 0.1″ headers).

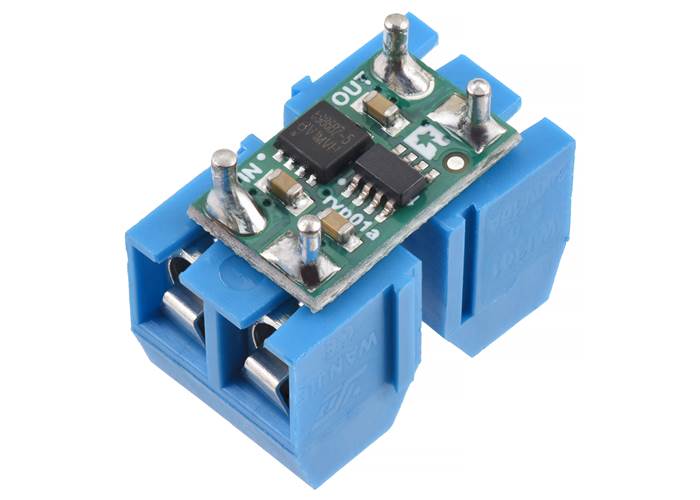

Pololu Reverse Voltage Protector soldered to a pair of two-pin, 5mm-pitch screw terminal blocks (not included).

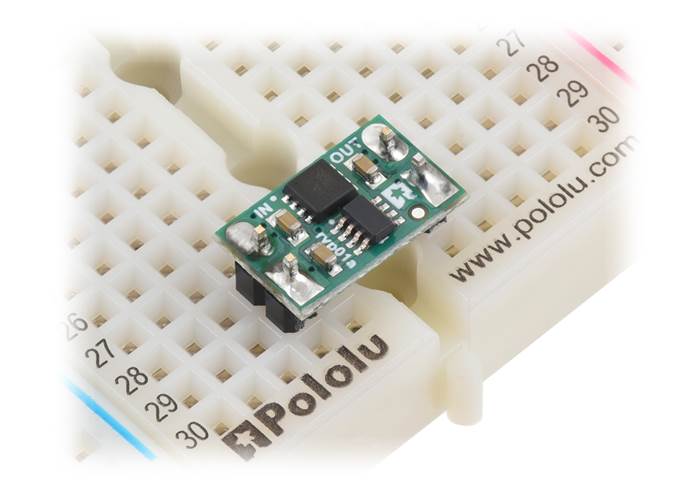

Pololu Reverse Voltage Protector soldered with 0.1″ male headers (not included) for use in a breadboard.

Optional TVS diode mounting location

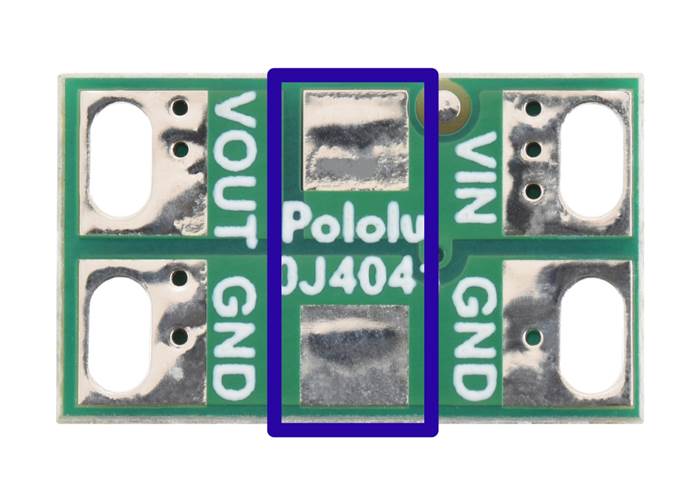

There are pads for adding an optional SMB-size transient voltage suppressor (TVS) across VIN and GND on the bottom side of the board:

Pololu Reverse Voltage Protector/Ideal Diode Reverse Voltage Protector, bottom view.

We can manufacture these with the TVS diode of your choice for custom high-volume orders (typically at least a few hundred pieces). If you are interested in such a customisation, please contact us for a quote.

Schematic

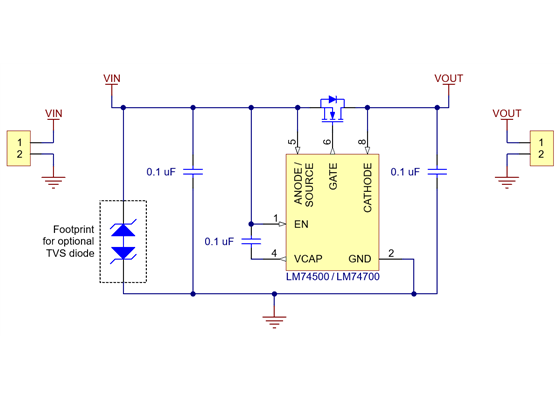

Schematic diagram of the Pololu Reverse Voltage Protector.


Specifications

Dimensions

Size: 0.3″ × 0.5″ × 0.08″
Weight: 0.2 g

General specifications

Minimum operating voltage: 4 V1
Maximum operating voltage: 65 V
Maximum current: 12 A
Reverse current blocking: Y

Notes:

1
Can operate down to 3.2V after startup.
