63:1 Metal Gearmotor 20Dx43L mm 12V CB with Extended Motor Shaft

These small brushed DC gearmotors can deliver a lot of power for their size. This version has a 12V brushed DC motor with long-life carbon brushes combined with a 62.5:1 metal spur gearbox.

AUD$ 44.95

Special Order

Shipping from $7.90

+44 more from our supplier in 7-10 days

Our Code: SKU-004406

Supplier Link: [Pololu MPN:3488]


Description

Overview

These cylindrical brushed DC gearmotors are available in a wide range of gear ratios, from 25:1 up to 488:1, and with three different motors: 6 V and 12 V motors with long-life carbon brushes (CB), and a 6 V motor with shorter-life precious metal brushes. All three motors offer similar performances at their respective nominal voltages, just with the 12 V motor drawing approximately half the current of the 6 V motor and with the carbon brush versions having longer lifetimes than the one with precious metal brushes.

The CB versions (shown on the right in the picture below), can be differentiated from versions with percious metal brushes (shown on the left) by their copper-coloured terminals.

20D mm metal gearmotor with precious metal brushes (left) next to a 20D CB version with long-life carbon brushes.

20D mm metal gearmotor precious metal brushes (left) next to 20D 6V CB and 12V CB long-life carbon brushes.

These gearmotors are optionally available with an additional 2 mm-diameter output shaft that protrudes 6 mm from the rear of the motor (see the middle picture below). This rear shaft rotates at the same speed as the input to the gearbox and offers a way to add an encoder, such as our magnetic encoder for 20D mm metal gearmotors as shown in the right picture below, to provide motor speed or position feedback.

20D mm metal gearmotor CB with long-life carbon brushes. (1)

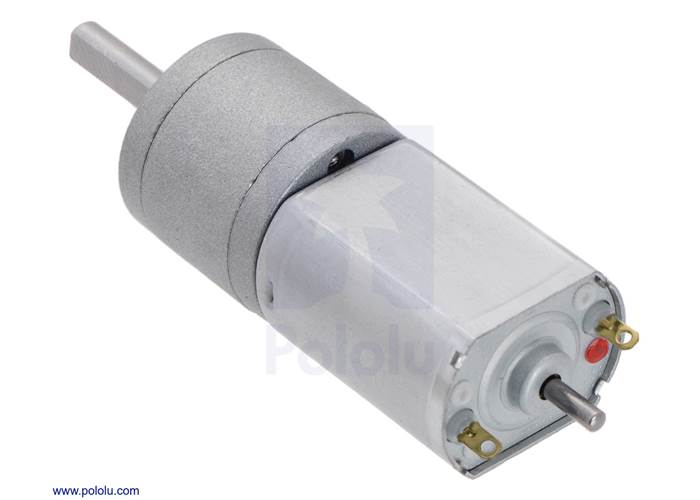

20D mm metal gearmotor CB with long-life carbon brushes and an extended motor shaft.

Magnetic Encoder Kit for 20D mm Metal Gearmotors assembled on a 20D mm metal gearmotor with extended motor shaft.

The gearmotors all have 20 mm-diameter gearboxes and 4 mm-diameter gearbox output shafts, so it is generally easy to swap one version for another if your design requirements change (though the length of the gearbox tends to increase with the gear ratio). Please see the 20D mm metal gearmotor comparison table for detailed specifications of all our 20D mm metal gearmotors. This dynamically-sortable table can help you find the gearmotor that offers the best blend of speed, torque, and current-draw for your particular application. A more basic comparison table is available below:

Rated
Voltage
Brush Type Stall
Current
@ Rated Voltage
No-Load
Speed
@ Rated Voltage
Approximate
Stall Torque
@ Rated Voltage


Single-Shaft
(Gearbox Only)


Dual-Shaft
(Gearbox & Motor)
12 V long-life
carbon
(CB)
1.6 A 570 RPM 26 oz-in 25:1 12V CB 25:1 12V CB dual shaft
450 RPM 33 oz-in 31:1 12V CB 31:1 12V CB dual shaft
225 RPM 58 oz-in 63:1 12V CB 63:1 12V CB dual shaft
180 RPM 75 oz-in 78:1 12V CB 78:1 12V CB dual shaft
140 RPM 85 oz-in 100:1 12V CB 100:1 12V CB dual shaft
110 RPM 110 oz-in 125:1 12V CB 125:1 12V CB dual shaft
90 RPM 130 oz-in 156:1 12V CB 156:1 12V CB dual shaft
72 RPM 160 oz-in 195:1 12V CB 195:1 12V CB dual shaft
57 RPM 200 oz-in 250:1 12V CB 250:1 12V CB dual shaft
45 RPM 250 oz-in 313:1 12V CB 313:1 12V CB dual shaft
36 RPM 290 oz-in 391:1 12V CB 391:1 12V CB dual shaft
29 RPM 350 oz-in 488:1 12V CB 488:1 12V CB dual shaft
6 V long-life
carbon
(CB)
2.9 A 590 RPM 22 oz-in 25:1 6V CB 25:1 6V CB dual shaft
470 RPM 28 oz-in 31:1 6V CB 31:1 6V CB dual shaft
230 RPM 54 oz-in 63:1 6V CB 63:1 6V CB dual shaft
190 RPM 62 oz-in 78:1 6V CB 78:1 6V CB dual shaft
150 RPM 72 oz-in 100:1 6V CB 100:1 6V CB dual shaft
120 RPM 87 oz-in 125:1 6V CB 125:1 6V CB dual shaft
93 RPM 110 oz-in 156:1 6V CB 156:1 6V CB dual shaft
75 RPM 130 oz-in 195:1 6V CB 195:1 6V CB dual shaft
60 RPM 170 oz-in 250:1 6V CB 250:1 6V CB dual shaft
46 RPM 220 oz-in 313:1 6V CB 313:1 6V CB dual shaft
37 RPM 260 oz-in 391:1 6V CB 391:1 6V CB dual shaft
30 RPM 310 oz-in 488:1 6V CB 488:1 6V CB dual shaft
6 V precious
metal
2.9 A 590 RPM 22 oz-in 25:1 6V 25:1 6V dual-shaft
470 RPM 28 oz-in 31:1 6V 31:1 6V dual-shaft
230 RPM 54 oz-in 63:1 6V 63:1 6V dual-shaft
190 RPM 62 oz-in 78:1 6V 78:1 6V dual-shaft
150 RPM 72 oz-in 100:1 6V 100:1 6V dual-shaft
120 RPM 87 oz-in 125:1 6V 125:1 6V dual-shaft
93 RPM 110 oz-in 156:1 6V 156:1 6V dual-shaft
75 RPM 130 oz-in 195:1 6V 195:1 6V dual-shaft
60 RPM 170 oz-in 250:1 6V 250:1 6V dual-shaft
46 RPM 220 oz-in 313:1 6V 313:1 6V dual-shaft
37 RPM 260 oz-in 391:1 6V 391:1 6V dual-shaft
30 RPM 310 oz-in 488:1 6V 488:1 6V dual-shaft

Note: Stalling or overloading gearmotors can greatly decrease their lifetimes and even result in immediate damage. In order to avoid damaging the gearbox, we recommend keeping continuously applied loads under 50 oz-in (3.5 kg*cm) for the versions with precious metal brushes and under 70 oz-in (5 kg-cm) for the versions with carbon brushes (the ones with “CB” in the name). Stalls can also result in rapid (potentially on the order of a second) thermal damage to the motor windings and brushes, especially for motors like this that can deliver a lot of power for their size; a general recommendation for brushed DC motors is to limit continuous current to approximately 25% of the stall current.

In general, these kinds of motors can run at voltages above and below their nominal voltages; lower voltages might not be practical, and higher voltages could start negatively affecting the life of the motor.

Details for item #3488

Exact gear ratio: ``(28×28×25×25×25) / (14×14×10×10×10) = bb(62.5:1)``

Dimensions

The diagram below shows the dimensions of the 20D mm line of metal gearmotors (units are mm over [inches]). This diagram is also available as a downloadable PDF (99k pdf).

Dimensions of the Pololu 20D mm metal gearmotors. Units are mm over [inches]. This diagram only applies to the listed gear ratios.

Gearmotor accessories

The gearmotor face plate has two mounting holes threaded for M2.5 screws, and you can use our custom-designed 20D mm metal gearmotor bracket (shown in the left picture below) to mount the gearmotor to your project via these mounting holes and the screws that come with the bracket.

Pololu 20D mm metal gearmotor bracket pair with included hardware.

20D mm metal gearmotor with a univeral aluminum mounting hub and mounted on a 20D mm metal gearmotor bracket.

The 4 mm diameter gearbox output shaft works with Pololu universal aluminium mounting hub for 4mm shafts, which can be used to mount our larger Pololu wheels (60mm-, 70mm-, 80mm-, and 90mm-diameter) or custom wheels and mechanisms to the gearmotor’s output shaft as shown in the left picture below. Alternatively, you could use our 4mm scooter wheel adaptor to mount many common scooter, skateboard, and inline skate wheels to the gearmotor’s output shaft as shown in the right picture below.

Pololu 70×8mm wheel mounted to a 20D mm metal gearmotor using a universal aluminum mounting hub for 4mm shafts.

A 20D mm gearmotor connected to a scooter wheel by the 4 mm scooter wheel adaptor.

These motors also work with the hex adapters included with the 120mm-diameter Wild Thumper wheels (the left picture below shows a 20D mm gearmotor while the right picture shows a larger 25D mm gearmotor):

Dagu Wild Thumper wheel 120×60mm (metallic red) with Pololu 20D mm metal gearmotor.

Dagu Wild Thumper wheel 120×60mm (chrome) with Pololu 25D mm metal gearmotor.

For a general-purpose hex adaptor, consider our 12mm hex wheel adaptor, which lets you use this motor with many common hobby RC wheels.

12mm Hex Wheel Adaptor for 4mm Shaft on a 20D mm Metal Gearmotor.

You can use our magnetic encoder kit for 20D mm metal gearmotors to provide motor speed or position feedback. Please note that this kit only works on gearmotor versions that have an extended motor shaft.

Magnetic Encoder Kit for 20D mm Metal Gearmotors assembled on a 20D mm metal gearmotor with extended motor shaft.

Magnetic Encoder Kit for 20D mm Metal Gearmotors assembled on a 20D mm metal gearmotor with extended motor shaft. (1)

We have a number of motor controllers and motor drivers that work with these 20D mm metal gearmotors. In particular, we recommend our MC33296-based motor drivers, for which we have basic single and dual carriers and a dual-channel shield for Arduino. Our VNH5019-based motor drivers (available as single and dual carriers) also work well with these motors, and because they can handle higher currents, they will run much cooler than the MC33926 carriers. If you are looking for higher-level control interfaces, such as USB, RC, analogue voltages, or serial, consider our SMC 18v7, Jrk 21v3, or TReX Jr.

Pololu dual MC33926 motor driver shield for Arduino.

VNH5019 motor driver carrier.

Simple Motor Controller 18v7, fully assembled.

We have an assortment of Hall effect-based current sensors to choose from for those who need to monitor motor current:

ACS711EX current sensor carrier -15.5A to +15.5A.

ACS714 current sensor carrier -5A to +5A.

Selecting the Right Gearmotor

We offer a wide selection of metal gearmotors that offer different combinations of speed and torque. Our metal gearmotor comparison table can help you find the motor that best meets your project’s requirements.

Some of the Pololu metal gearmotors.


Specifications

Dimensions

Size: 20D × 43L mm
Weight: 45 g
Shaft diameter: 4 mm

General specifications

Gear ratio: 62.5:1
Free-run speed @ 6V: 115 rpm1
Stall current @ 6V: 0.8 A1
Stall torque @ 6V: 29 oz·in1
Free-run speed @ 12V: 225 rpm
Free-run current @ 12V: 90 mA
Stall current @ 12V: 1.6 A2
Stall torque @ 12V: 58 oz·in2
Extended motor shaft?: Y
Motor type: 1.6A stall @ 12V CB (carbon brush)

Notes:

1
This motor will run at 6 V but is intended for operation at 12 V.
2
Stalling is likely to damage the gearmotor. Stall parameters come from a theoretical extrapolation of performance at loads far from stall. As the motor heats up, as happens as it approaches an actual stall, the stall torque and current decrease.

Resources

File downloads

Dimension diagram for the Pololu 20D mm metal gearmotors (99k pdf)
3D models of 20D mm gearmotors (3MB zip)
This file contains 3D models (in the step file format) of the 20D mm gearmotors. Note: these models only accurately represent our newer versions with 18mm-long output shafts; they are not accurate representations of the older versions with shorter output shafts (i.e. gear ratios 29:1, 56:1, 73:1, and 154:1).

Recommended links

MATLAB script to plot motor performance curves for Pololu brushed DC gearmotors
This MATLAB script, written by Ali Asgher Mansoor Habiby, plots speed, power, current draw, and efficiency as they vary with torque when you input the gearmotor specifications. It also prints the resistance of the motor, and the current draw and torque at which maximum efficiency and maximum power occur.

FAQs

What material is the gearbox output shaft made of, and can I get the shaft customised?
The shaft is composed of hardened stainless steel. Some customisation is generally possible (e.g., different length or no D-shaft) for sufficiently high-volume orders. If this is something you are interested in, please email us.
I need additional information about this motor; do you have a datasheet?

No; the information we have available for this motor can be found on its product page. However, you can approximate various additional motor parameters from the information found in the “Specs” tab.

The electrical resistance of the motor can be approximated by dividing the rated voltage by the stall current (at the rated voltage). The electromotive force constant (Ke) can be approximated by dividing the rated voltage by the free-run speed (at the rated voltage). To approximate the motor torque constant (Kt), you can divide the stall torque by the stall current.

For pretty much any DC motor, the current, speed, power, and efficiency curves as a function of torque will look like those in the graph below (assuming motor voltage and temperature are constant):

The current and speed curves are approximately linear, and the product pages for our motors provide the approximate end points for these lines: (0 torque, no-load current) and (stall torque, stall current) for the red line, and (0 torque, no-load speed) and (stall torque, 0 speed) for the blue line.

The orange output power curve is the product of the speed and the torque, which results in an inverted parabola with its peak at 50% of the stall torque.

The green efficiency curve is the output power divided by the input power, where the input power is current times voltage. The voltage is constant, so you can divide the output power curve by the current line to get the general shape of the efficiency curve, which in turn lets you identify the torque, speed, and current that correspond to max efficiency.

There are many programs out there that you can use to generate these curves. For example, if you have access to MATLAB, you can use this customer-created MATLAB script to generate these motor plots for you from the specifications we provide for each gearmotor.

Note: A good general rule of thumb is to keep the continuous load on a DC motor from exceeding approximately 20% to 30% of the stall torque. Stalling gearmotors can greatly decrease their lifetimes, occasionally resulting in immediate damage to the gearbox or thermal damage to the motor windings or brushes. Do not expect to be able to safely operate a brushed DC gearmotor all the way to stall. The safe operating range will depend on the specifics of the gearmotor itself.
