This 0.036″-thick stainless steel plate can be mounted to the front of the Zumo chassis to create a slanted, bulldozer-like blade for pushing around objects, such as other mini-sumo robots.
Special Order
Shipping from $2.90
+77 more from our supplier in 7-10 days
Our Code: MEC-30103
Supplier Link: [Pololu MPN:1410]

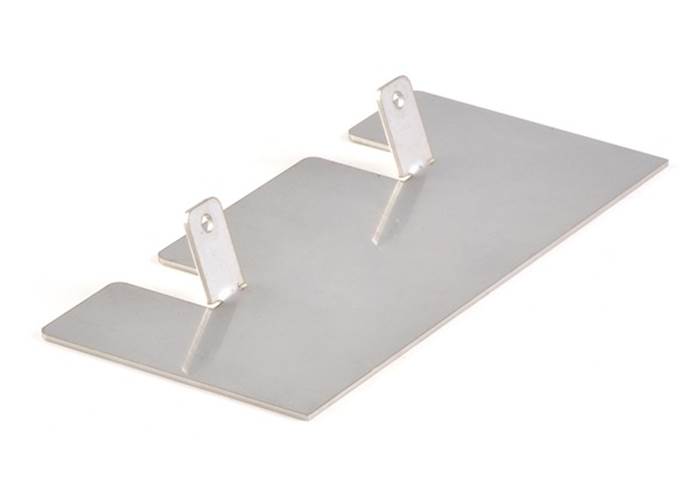

This basic sumo blade (sometimes also called a “scoop”) is intended for use with the Zumo chassis. It is made of 0.036″-thick, laser-cut stainless steel, and it ships flat as shown in the product picture. The two tabs must be bent to an angle of approximately 70° before it can be mounted to the front of the Zumo chassis. We recommend using a pair of long-nose pliers to bend the tabs:

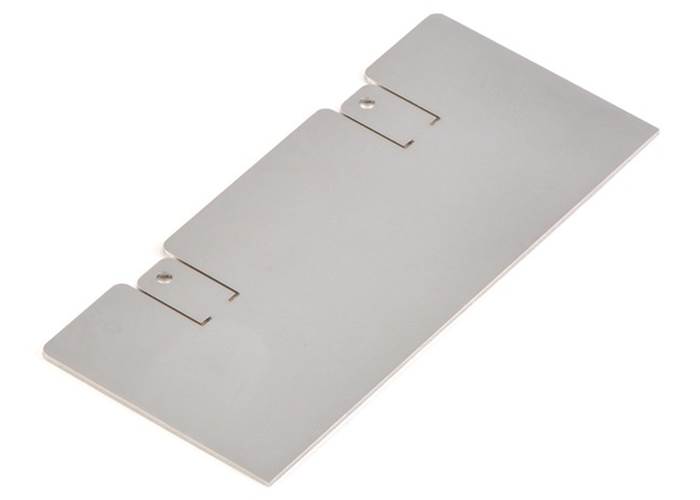

Basic sumo blade for Zumo chassis
|

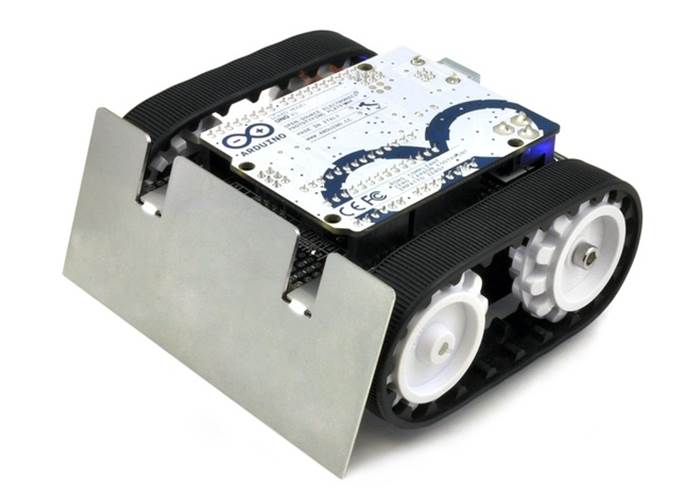

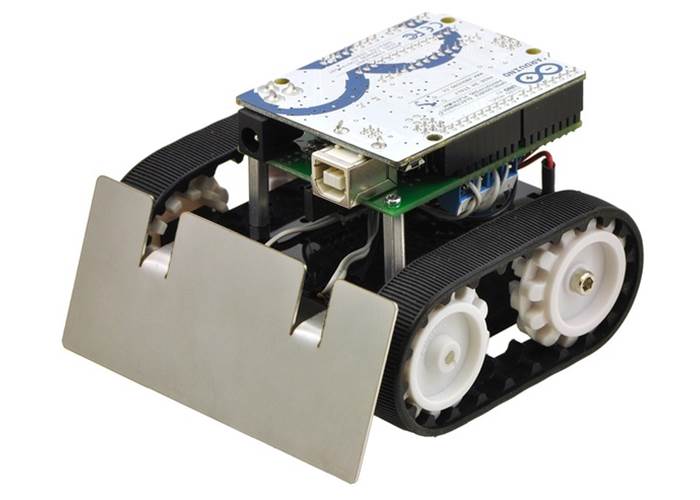

Basic sumo blade mounted on a Zumo chassis
|

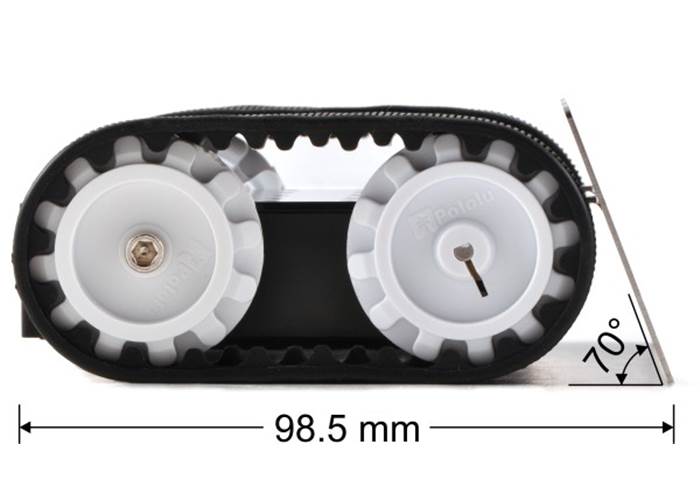

The chassis mounts to the two protruding front mounting holes of the Zumo chassis using the #2-56 screws included with the chassis kit.

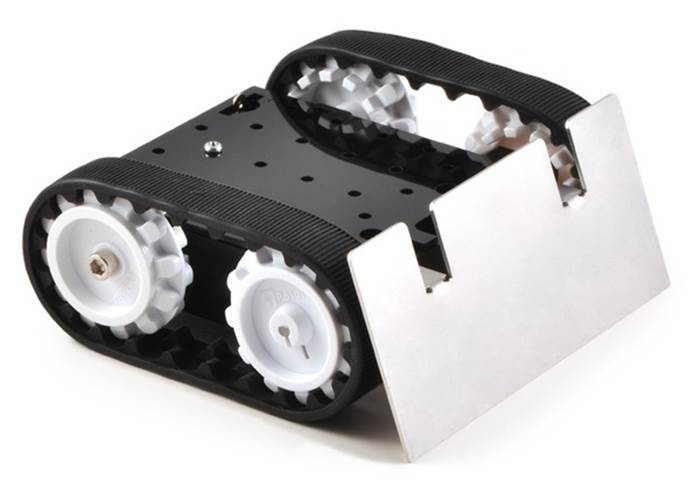

Basic sumo blade mounted on a Zumo chassis
|
Dimensions of the basic sumo blade for Zumo chassis
|
