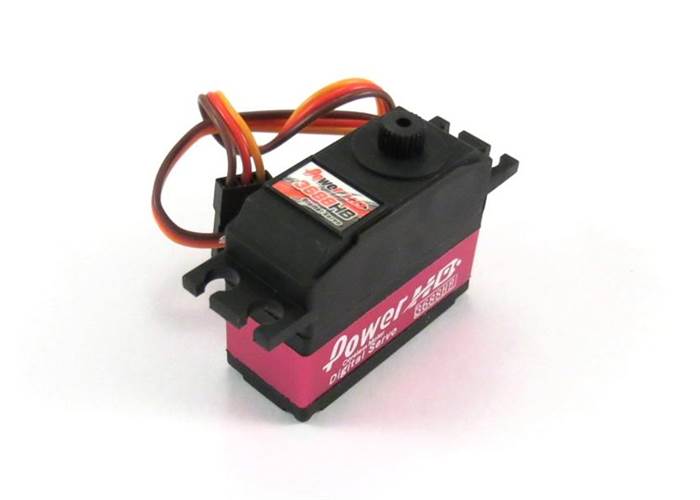

Power HD Digital Mini High-Speed Servo 3688HB

The 3688HB digital servo from Power HD, a high-quality, miniature servo with digital control electronics for increased performance, is one of the fastest servos we carry. The output shaft is supported by two ball bearings, and some of the gears are metal for increased durability. Servo horns and associated hardware are included. Key specs at 6 V: 0.07 sec/60°, 35 oz-in (2.5 kg-cm), 26 g.

AUD$ 40.95

In stock in Australia

Shipping from $7.90

+lots more from our supplier in 7 days

Our Code: MEC-30115


The DS-3688HB is a great high-performance, fast actuator for small mechanisms. Digital electronics coupled with mostly metal gears and two ball bearings give this servo a distinct edge over similarly sized servos. The lead is terminated with a standard “JR”-style connector, which is Futaba-compatible.

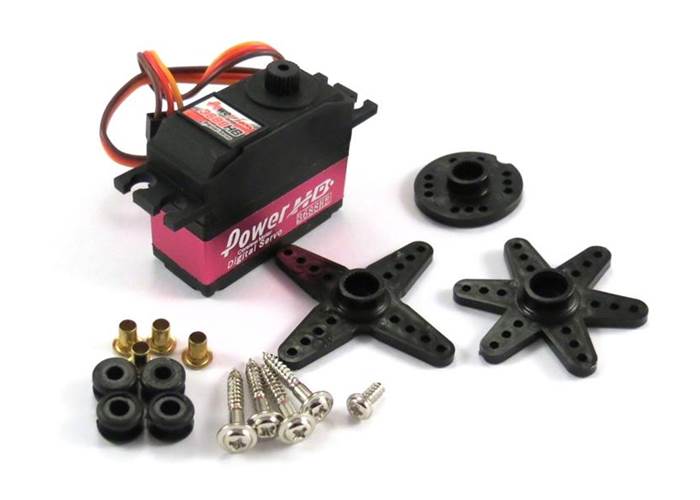

Power HD Mini High-Speed Digital Servo 3688HB - included hardware




Size: 35 x 15 x 29.2 mm
Weight: 26 g

General specifications

Digital?: Y
Free-run current @ 6V: 220 mA
Stall current @ 6V: 1300 mA
Speed @ 6V: 0.07 sec/60°
Stall torque @ 6V: 2.5 kg·cm
Speed @ 4.8V: 0.08 sec/60°
Stall torque @ 4.8V: 2.3 kg·cm
Lead length: 6 in
Hardware included?: Y
