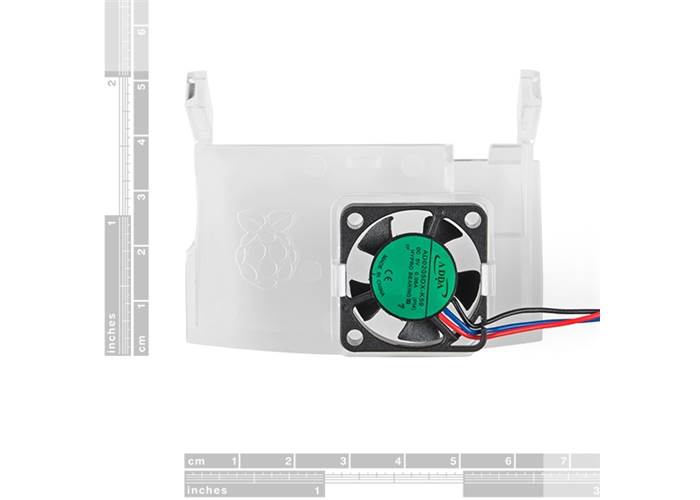

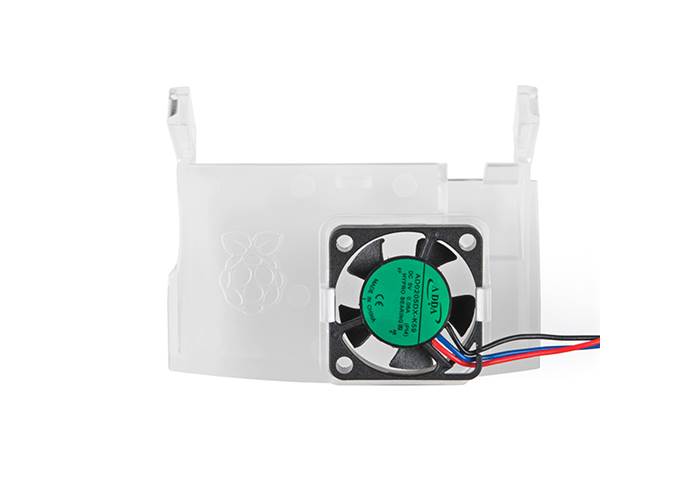

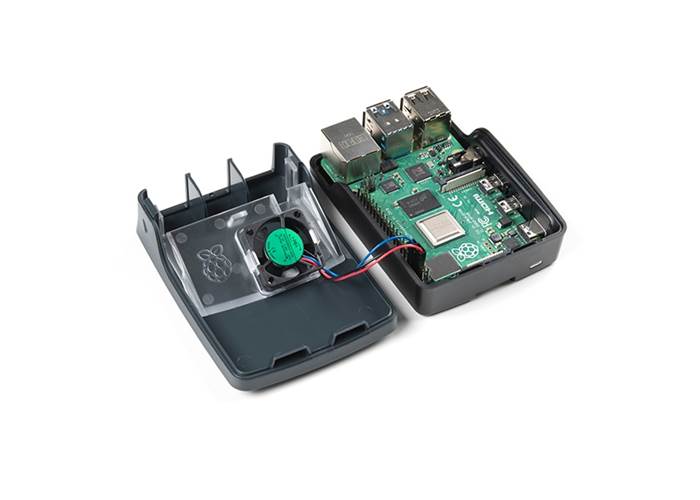

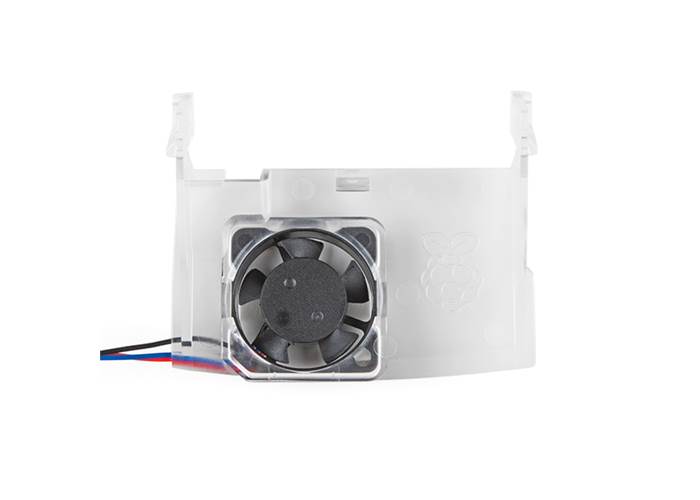

Raspberry Pi 4 Case Fan

The Raspberry Pi 4 Case Fan works with Raspberry Pi 4 and the Raspberry Pi 4 Case. Designed for overclockers and other power users, it keeps your Raspberry Pi 4 at a comfortable operating temperature even under heavy load.

9.95

Not currently available

Our Code: SKU-007076

Supplier Link: [SparkFun MPN:17368]


Description

The Raspberry Pi 4 Case Fan works with Raspberry Pi 4 and the Raspberry Pi 4 Case. Designed for overclockers and other power users, it keeps your Raspberry Pi 4 at a comfortable operating temperature even under heavy load.

The temperature-controlled fan delivers up to 1.4 CFM of airflow over the processor, memory, and power management IC. The bundled 18mm × 18mm × 10mm heatsink with self-adhesive pad improves heat transfer from the processor.

Includes:

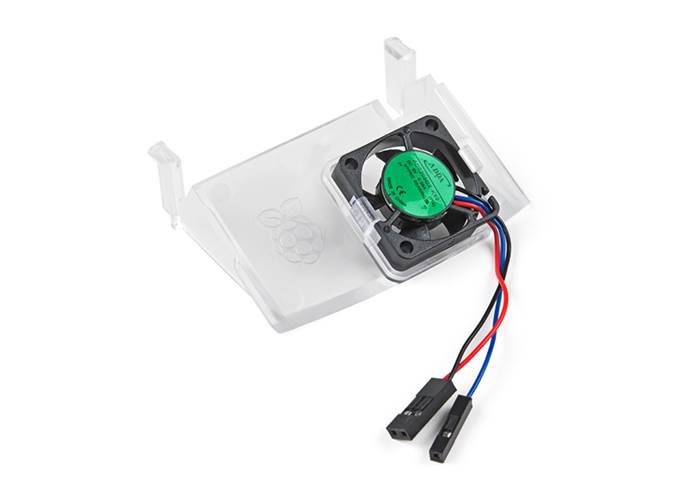

  • Fan in clear PC Case with Wire Leads.
  • Fin Style Heat Sink with Adhesive Thermal Tape.

Specifications

  • Designed to fit in the Raspberry Pi 4 Official Case.
  • 18mm × 18mm × 10mm heatsink with self-adhesive pad improves heat transfer from the processor.
  • 5V Input Voltage (via 40 pin GPIO Header)
  • Pulse width modulation speed control via user-selectable GPIO pin
  • 1.4CFM Max Airflow
  • Clear PC Fan Case
