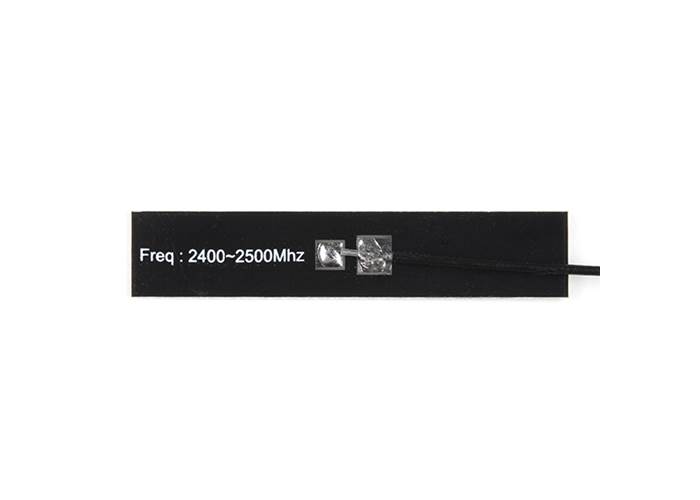

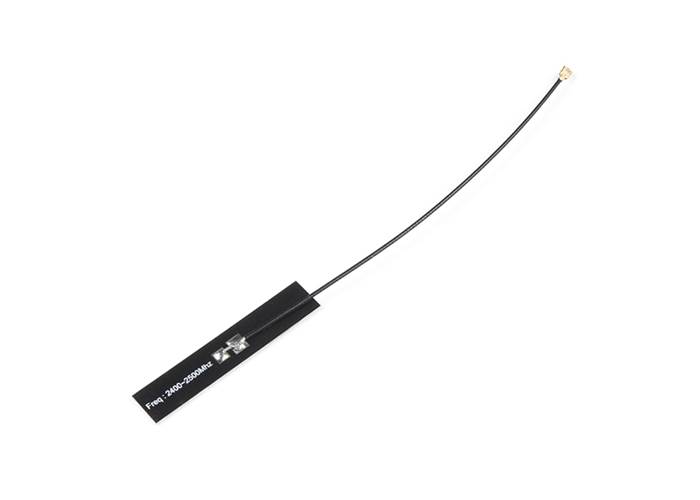

PCB Antenna - U.FL (2.4GHz)

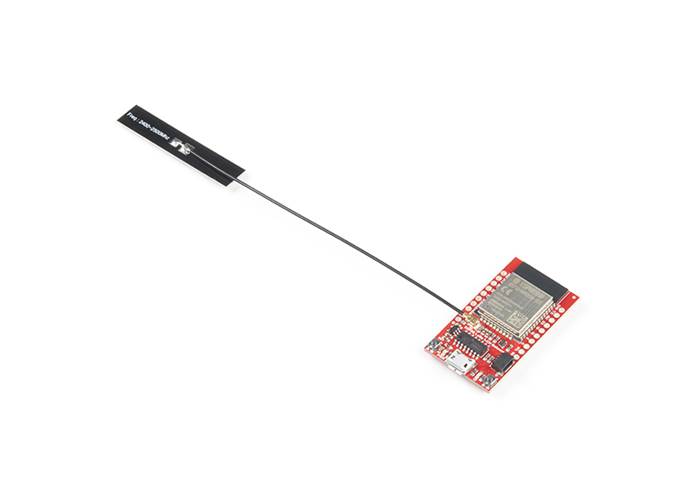

This small form-factor antenna offers a 2.4GHz frequency range. These antennae offer adhesive backing that simplifies mounting within the device for a FPC or PCB. Just connect the antenna using the attached U.FL connector and then peel and stick!

• Frequency range: 2400-2500Mhz
• Polarization: Vertical
• Input impedance: 50Ω
• Power: 30w
• Size: 50x10x1mm
• Cable length: 100mm
• Cable type: 1.13 coix cable

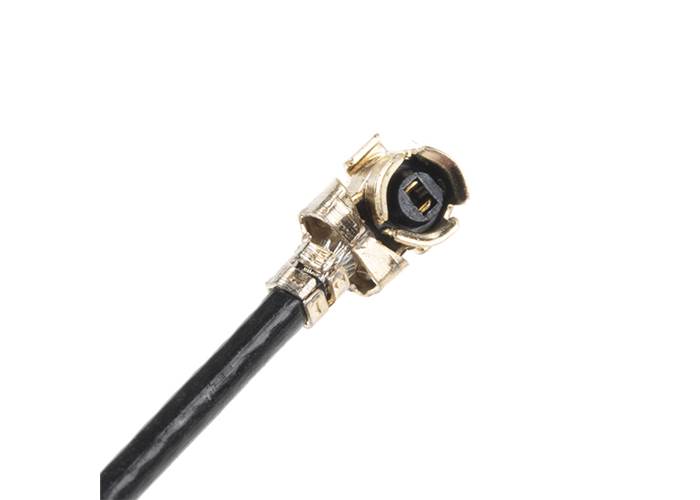

• Connector: U.FL
• Mounting : 3M sticker
• Operation Temperature: - 30 °C ~ + 65 °C
• Storage Temperature: - 30 °C ~ + 80 °C

• Datasheet
