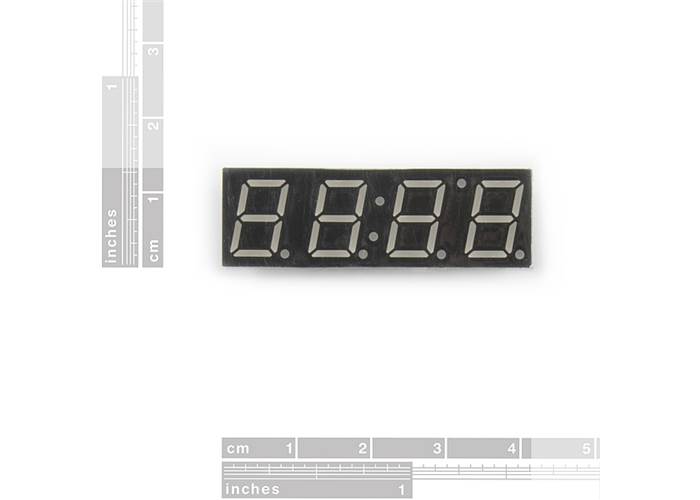

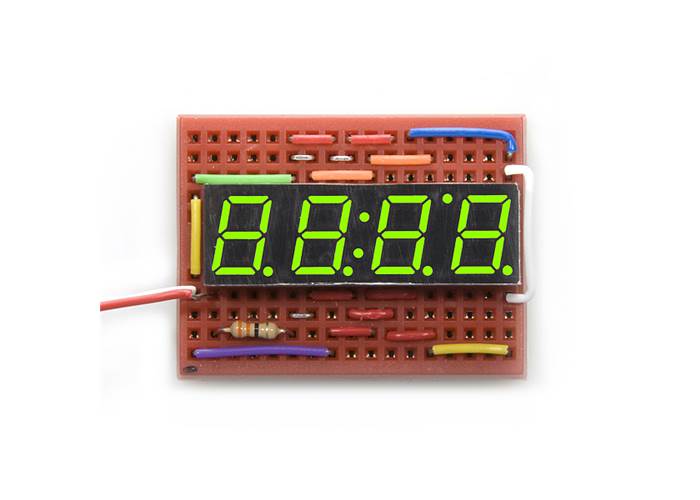

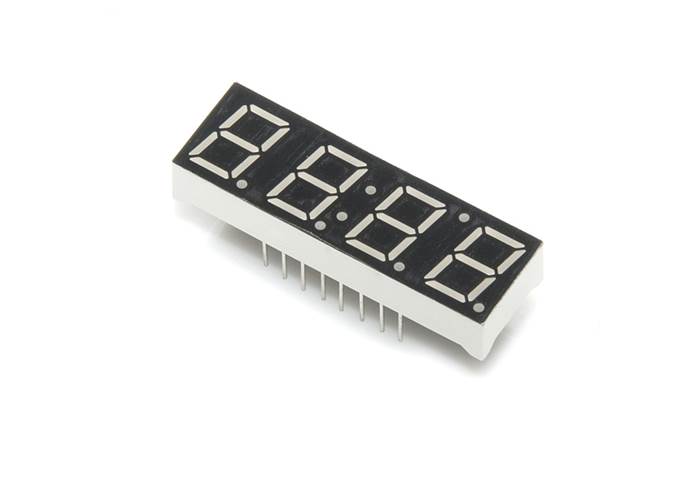

7-Segment Display - 4-Digit (Kelly Green)

This is a basic, 4-digit 7-segment display - green in colour. It has a common anode. The display features one decimal point per digit, and individually controllable apostrophe and colon points. The LEDs have a forward voltage of 2.1VDC and a max forward current of 20mA.

Not currently available

Our Code: SKU-000433

Supplier Link: [SparkFun MPN:9482]

Description

This is a basic, 4-digit 7-segment display - green in colour. It has a common anode. The display features one decimal point per digit, and individually controllable apostrophe and colon points.

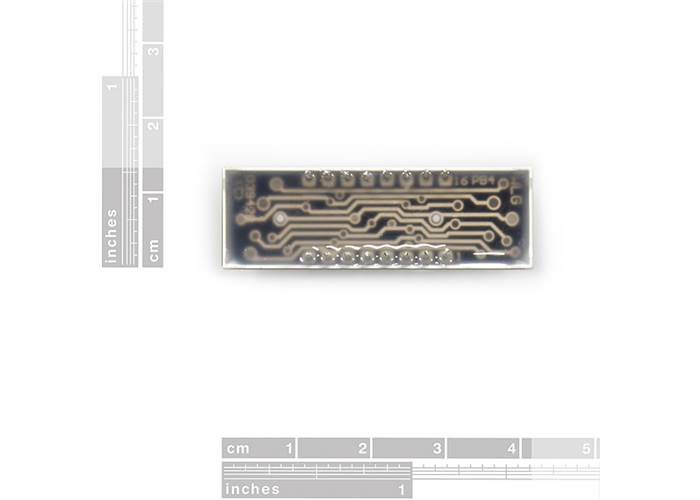

The LEDs have a forward voltage of 2.1VDC and a max forward current of 20mA. The hardware interface is sixteen (two rows of eight) through-hole pins.

We carry this same display in red, yellow, and blue.

Dimensions

  • Overall Display: 40.18 x 12.8 mm (1.58 x 0.50")
  • Digit Height: 10mm (0.39")
