Beaglebone Black Cape - LCD (7.0")

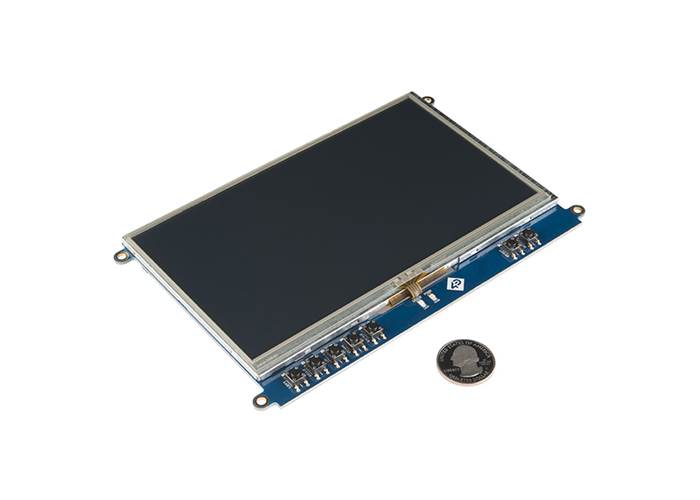

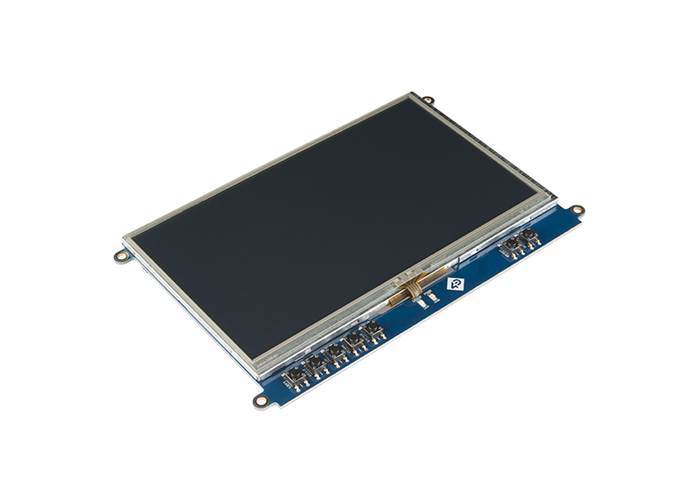

The 7.0” resistive touch LCD touch from 4D Systems is a cape specifically designed for the Beaglebone Black, and provides a 7.0” primary display for the BBB for direct user interaction and information display.

Not currently available

Our Code: SKU-001276

Supplier Link: [SparkFun MPN:12086]


Description

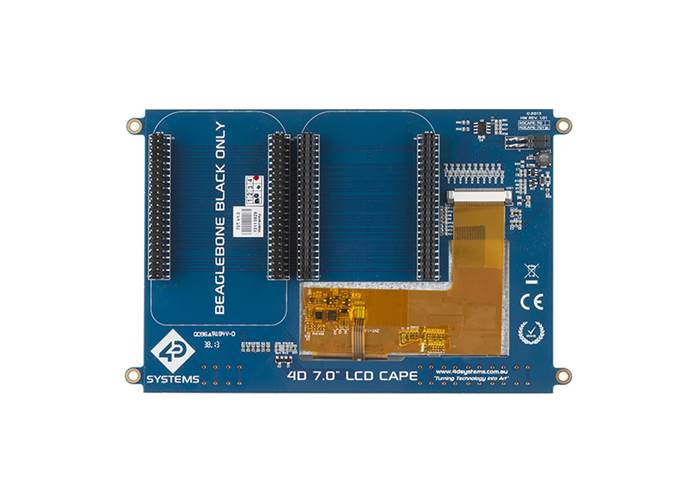

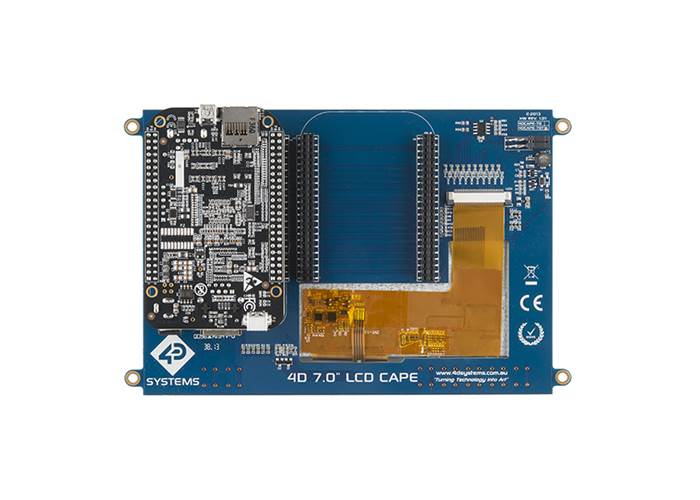

The 7.0” resistive touch LCD touch from 4D Systems is a cape specifically designed for the Beaglebone Black, and provides a 7.0” primary display for the BBB for direct user interaction and information display. The Beaglebone Black connects directly to the back of the LCD cape, and provides everything the cape requires such as power and display signals.

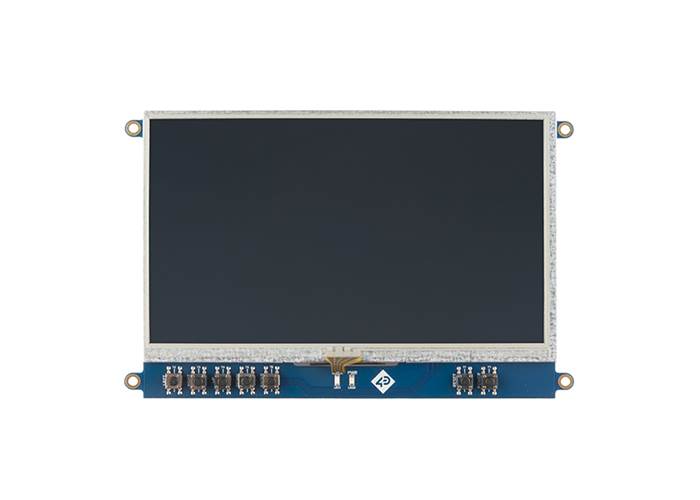

The Beaglebone Black LCD cape features 7 push buttons below the screen, LEFT, RIGHT, UP, DOWN, ENTER, RESET and POWER, along with 2 LED’s to indicate Power and User Status. Mounting the cape is easy with the 4x 3.5mm mounting holes present on it, enabling standard M3 or #6-32 screws to fasten the the LCD cape as required.

Note: This LCD is only compatible with the Beaglebone Black.

Features:

  • 7.0” TFT LCD CAPE for the Beaglebone Black
  • Resistive Touch Screen
  • 7 push buttons including LEFT, RIGHT, UP, DOWN, ENTER, RESET and POWER
  • 2 LED Lights for Power and User
  • 2x2 Jumper with shunts for EEPROM CAPE ID selection
  • Module dimensions: 179.9 x 114.9 x 19.5mm
  • Module dimensions with Beaglebone Black: Approx 179.9 x 114.9 x 25.7mm
  • 4x 3.5mm Mounting holes
