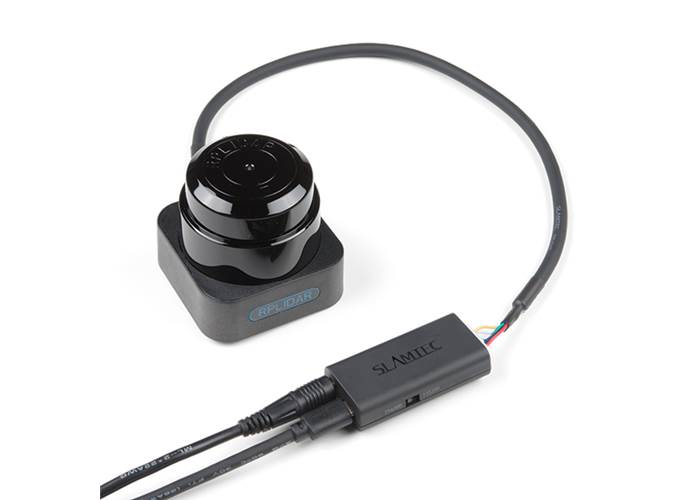

RPLIDAR S1 360° TOF Laser Range Scanner

The RPLIDAR S1 is the next generation low cost 360 degree 2D laser scanner (LIDAR) solution developed by SLAMTEC. It can take up to 9200 samples of laser ranging per second with high rotation speed.

Not currently available

Our Code: SKU-005999

Supplier Link: [SparkFun MPN:15872]


Description

The RPLIDAR S1 is the next generation low cost 360 degree 2D laser scanner (LIDAR) solution developed by SLAMTEC. It can take up to 9200 samples of laser ranging per second with high rotation speed. And equipped with SLAMTEC patented OPTMAG technology, it breakouts the life limitation of traditional LIDAR system so as to work stably for a long time.

The system can perform 2D 360-degree scan within a 40-meter range. The generated 2D point cloud data can be used in mapping, localisation and object/environment modelling.

Compared with RPLIDARs in other series, RPLIDAR S1 has a more stable performance when detecting objects in long distance, objects in white or black alternatively and objects under direct sunlight, which is ideal for map building in the outdoor environment within a 40-meter ranging radius. Therefore, it can be widely applied in many consumer-oriented business scenarios.

The typical scanning frequency of RPLIDAR S1 is 10Hz(600rpm), and the frequency can be freely adjusted within the 8-15Hz range according to the specific requirements. With the 10Hz scanning frequency, the sampling rate is 9.2kHz and the angular resolution is 0.391°.

Due to the improvements in SLAMTEC hardware operating performance and related algorithm, RPLIDAR S1 works well in all kinds of indoor environment and outdoor environment with direct sunlight. Meanwhile, before leaving the factory, every RPLIDAR S1 has passed the strict testing to ensure the laser output power meet the eye-safety standard of IEC-60825 Class 1.

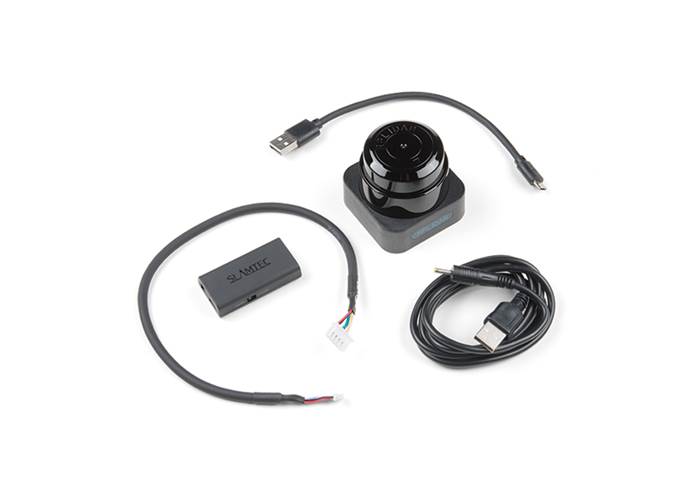

Includes:

  • S1 360° Time of Flight Sensor

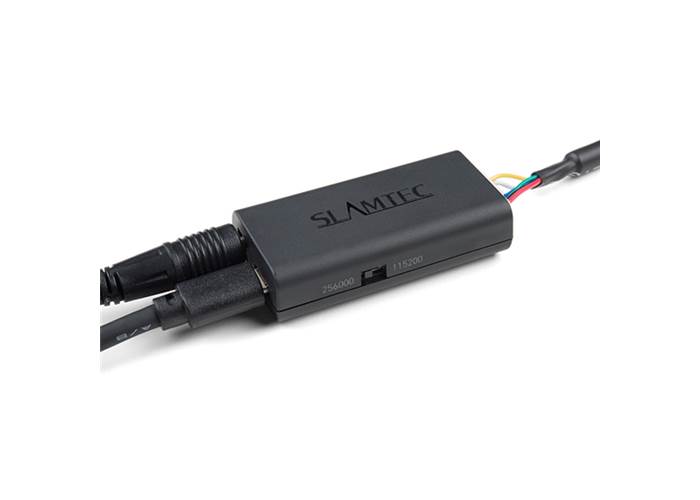

  • USB Interface Board (enclosed)
  • USB to Power Adaptor
  • USB to USB Mini B Cable
  • Interface Cable for Sensor to USB Interface Connection

Specifications

  • 360° Sensing ability
  • 40M Range on White Objects, 10M on Black Objects
  • 9200 Samples per Second
  • 5-15 Hz Adjustable sampling frequency
  • 3.3V UART TTL Interface
  • 3 cm distance resolution
  • 0.391 typical angular resolution
  • 256K Baud

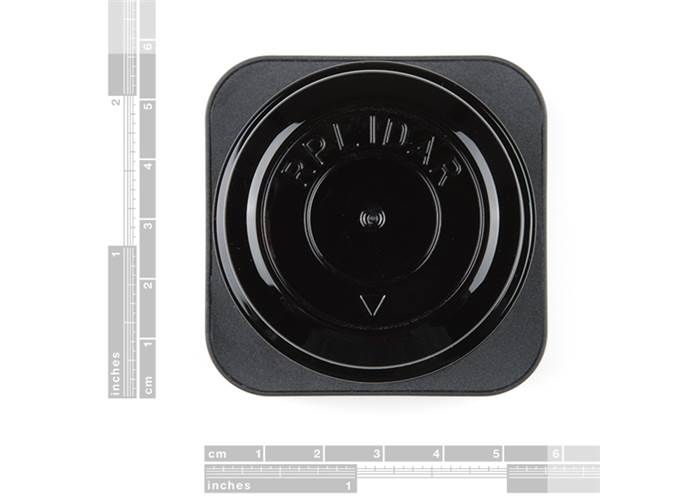

  • 55.5 x 55.5 x 51mm
  • 105g
