Low-cost basic SOIC break out boards. These are custom PCB boards that interface standard SOIC devices to standard .1" headers. Pad layout fits all standard SOIC devices. 28-SOIC Standard .6" spacing between pins. Will fit directly into a standard width (600 mil) DIP socket.
Special Order
Shipping from $2.90
+26 more from our supplier in 7-10 days
Our Code: SKU-000051
Supplier Link: [SparkFun MPN:496]

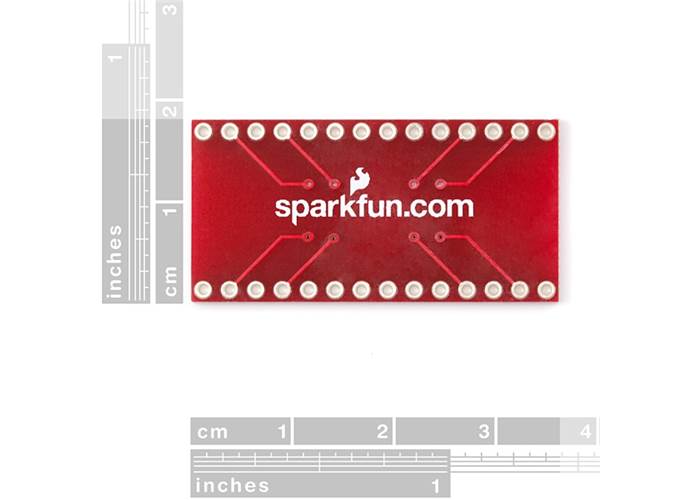

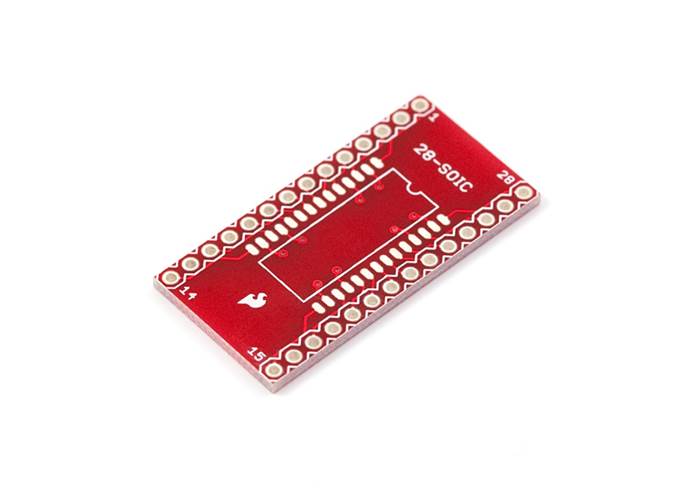

Low-cost basic SOIC break out boards. These are custom PCB boards that interface standard SOIC devices to standard .1" headers.
Pad layout fits all standard SOIC devices. 28-SOIC Standard .6" spacing between pins. Will fit directly into a standard width (600 mil) DIP socket. For wide ICs (memories, drivers, 74s, etc). 40 Pin break-away headers are perfect for use with these custom PCBs. Machine pin headers may be a better option for IC sockets.
Dimensions: 0.7x1.50"
