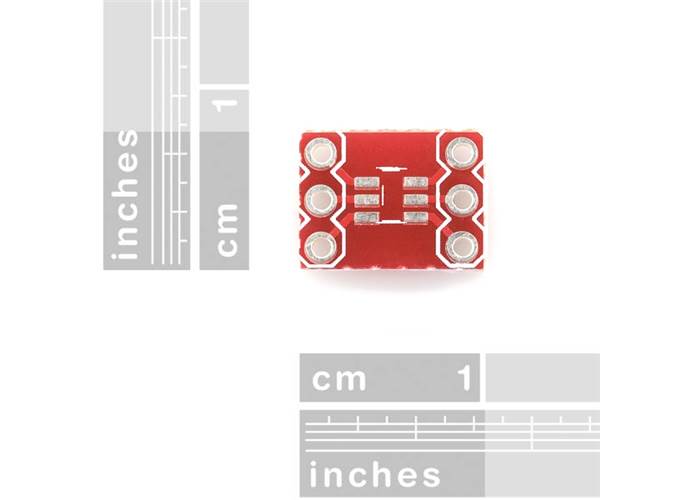

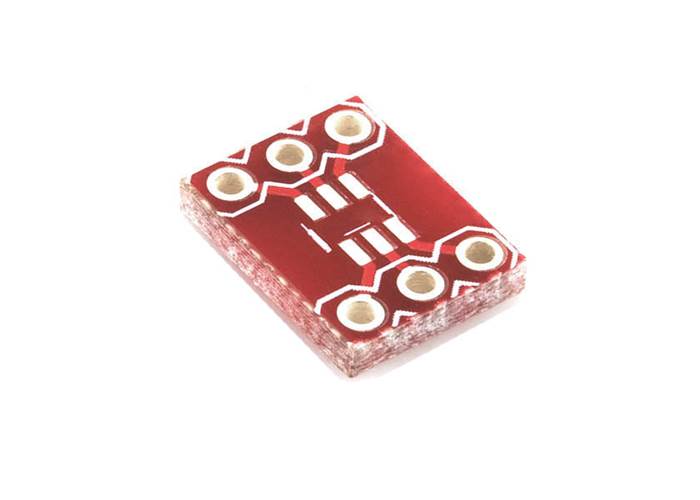

This 6 pin SOT-23 to DIP adaptor enables you to convert a tiny surface mount SOT-23 package like many MOSFETS or regulators to a easy to work with DIP component. The pin spacings fit a standard breadboard or you can solder wires to the holes instead for permanent installations.
Special Order
Shipping from $2.90
+lots more from our supplier in 7-10 days
Our Code: SKU-000109
Supplier Link: [SparkFun MPN:717]
6 pin SOT-23 to DIP adaptor. Created to take SOT23 of various pin sizes breakout to DIP. This will work with 3-pin MOSFETs, BJTs, Voltage Regulators (SOT-23-5), and various other Micro6, Micro5, etc packages.

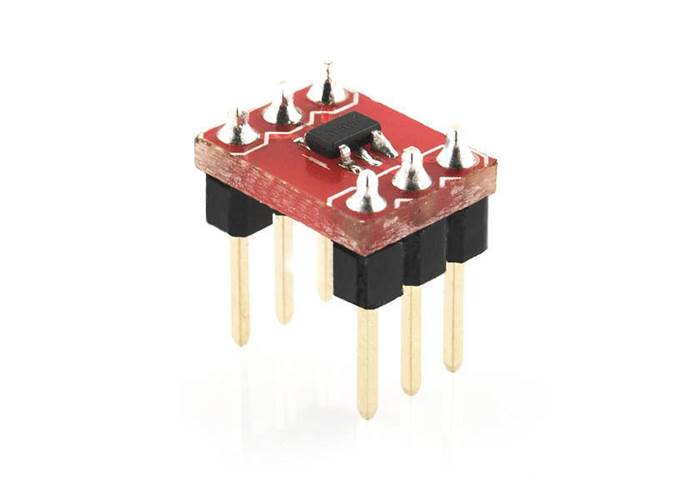

DIP width is 0.300" (300mil) and will fit nicely into any breadboard or DIP socket. 40 Pin break-away headers are perfect for use with these custom PCBs. Machine pin headers may be a better option for IC sockets. Pad layout fits all standard SOT23 packages including:

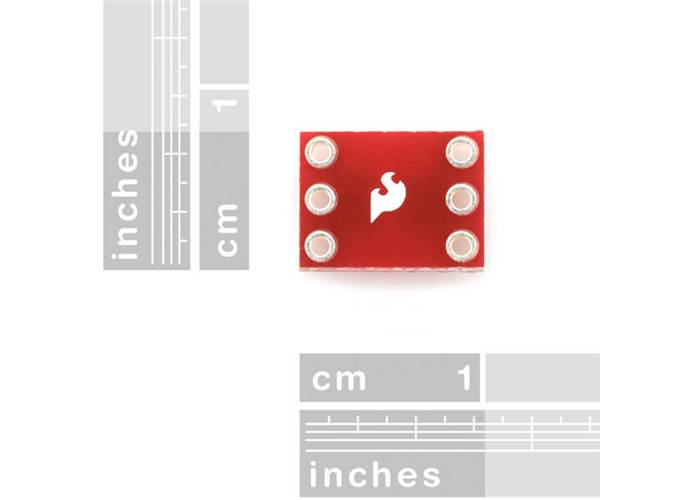

Dimensions: 0.34x0.46"
